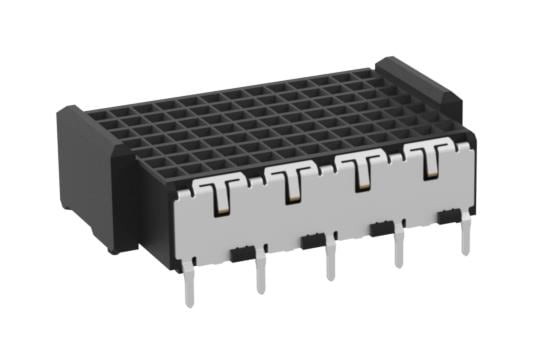

ERNI - TE Connectivity 394930-E Connectors MicroSpeed91FemaleSignal Blind MateSMDTHR4
Model394930-E
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.25 mm (0.049 in)
Mounting Angle: Straight
Mounting Style: Mounting Peg
Number of Rows: 7 Row
Contact Plating: Gold
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 91 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
