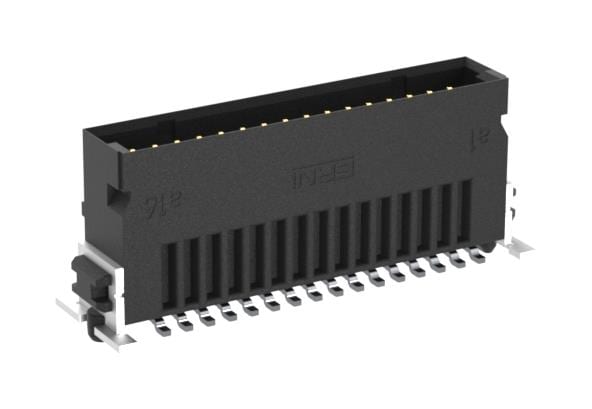

ERNI - TE Connectivity 254416-E Headers SMCQ 32 M AB VV 8-23 CL * H007 137 E005
Model254416-E
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.27 mm (0.05 in)
Data Rate: 3 Gbps
Stack Height: 4.85 mm
Current Rating: 1.7 A
Mounting Angle: Vertical
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Maximum Data Rate: 3 Gbps
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 32 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
