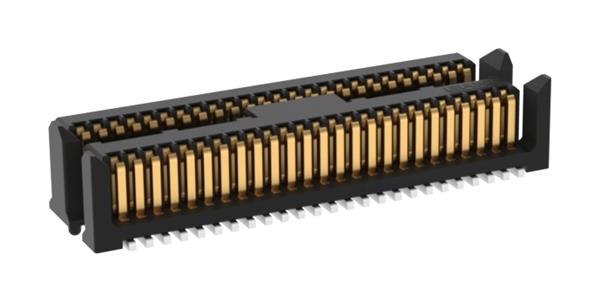

ERNI - TE Connectivity 114713-E Connectors 50-PIN,VERTICAL,SMT
Model114713-E
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.8 mm (0.031 in)
Unit Weight: 396 mg
Stack Height: 5 mm
Current Rating: 1.6 A
Mounting Angle: Vertical
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Termination Style: Solder
Number of Positions: 50 Position
Insulation Resistance: 10 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
