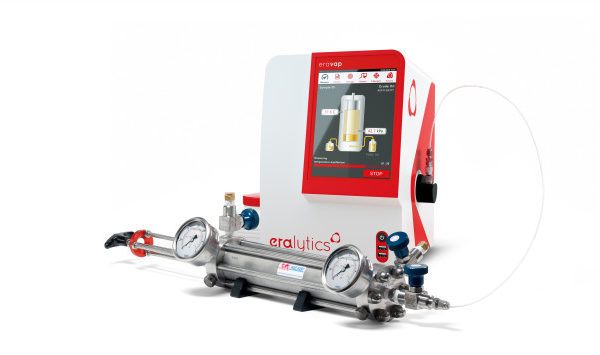

Eralytics ERAVAP LPG LPG Vapor Pressure Tester (EV20)

Temperature Range:0 °C – 120 °C (32 °F – 248 °F) with Peltier technology – No external cooling required

Temperature Stability: 0.01 °C (0.02 °F)

Pressure Range: 0 kPa – 2 000 kPa (0 psi – 290 psi) – Extended range pressure transducer

Pressure Resolution: 0.01 kPa (0.0014 psi)

Sample Volume: 1 mL (2.2 mL per rinsing cycle)

Measurement Time: 5 minutes for a standard measurement

Vapor / Liquid Ratio: Variable from 0.02/1 – 100/1 (Method dependend)

Precision Repeatability: r ≤ 0.2 kPa; Reproducibility: R ≤ 0.5 kPa (0.073 psi) measured with cyclopentane @ 37.8 °C

Power Requirements: Auto-switching 85 – 264 V AC, 47 – 63 Hz, max. 150 W (multi-voltage power supply)

Dimensions (W x H x D) / Weight: 29 x 35 x 34 cm (11.4 x 13.8 x 13.4 in) / 9.7 kg (21.4 lb)
