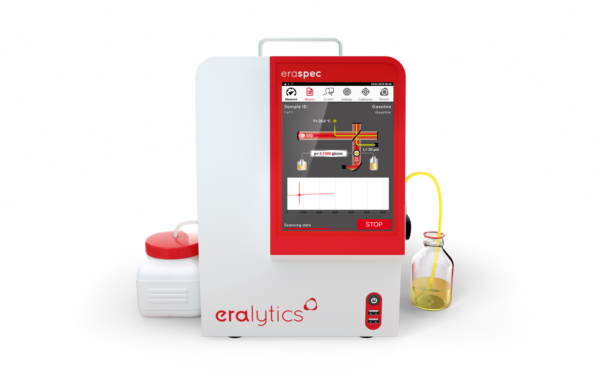

Eralytics ERASPEC Ftir Fuel Analyser

- Warm-up time: 30 second

- Sample Introduction: Directly from the sample container by an integrated pump

- Measurement Time: 60 seconds, includes fully automated rinsing, filling and measurement (DENS7777)

- Sample Volume: 10 mL

- Research Octane Number (RON):70 - 110

- Density Meter: Temp. controlled oscillating U-tube density meter (0-3 g/cm3): Standard density module (r = 0.0005 g/cm3; ASTM D7777)

- Oxygenate Parameters

MTBE: 0 - 20 Vol%

ETBE: 0 - 25 Vol%

TAME: 0 - 25 Vol%

TAEE: 0 - 20 Vol%

DIPE: 0 - 20 Vol%

Dimethoxymethane (DMM): 0 - 20 Vol%

Methanol: 0 - 15 Vol%

Ethanol: 0 - 100 Vol%

Iso-Propanol: 0 - 20 Vol%

1-Butanol: 0 - 100 Vol%

2-Butanol: 0 - 25 Vol%

Isobutanol: 0 - 50 Vol%

tert-Butanol: 0 - 25 Vol%

Dimethylcarbonate (DMC): 0 - 15 Vol%

Methylacetate: 0 - 15 Vol%

Ethylacetate: 0 - 15 Vol%

Isobutylacetate: 0 - 15 Vol%

Sec-Butylacetate: 0 - 15 Vol%

- Aromatics

Benzene: 0 -10 Vol%

Toluene: 0 - 20 Vol%

o-Xylene: 0 - 20 Vol%

m-Xylene: 0 - 20 Vol%

p-Xylene: 0 - 20 Vol%

Aniline: 0 - 15 Vol%

N-Methylaniline: 0 - 15 Vol%

and others.
