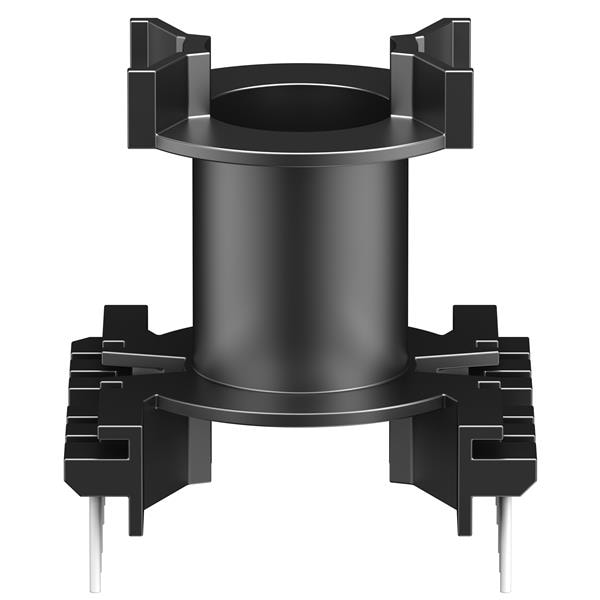

EPCOS B65982E0012D001 Ungapped Coil former PQ50/50 Phenolic T375HF

Core: PQ Core

Core Size: PQ 50 x 50

Unit Weight: 20 g

Lead Spacing: 7.62 mm

Core Material: PMC Thermosetting Plastic

Inside Height: 30.4 mm

Inside Length: 34.4 mm

Lead Diameter: 1.2 mm

Outside Width: 45.72 mm

Accessory Type: Coil Former

Number of Pins: 12 Pin

Outside Height: 51 mm

Outside Length: 51 mm

Inside Diameter: 20.8 mm

Outside Diameter: 43 mm

Termination Style: Pin

Maximum DC Resistance: 10.2 uOhms
