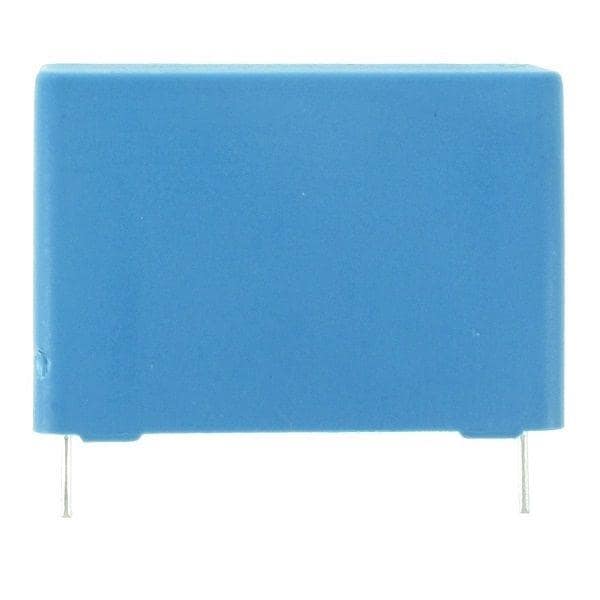

EPCOS B32682A6473K000 Metallized Polypropylene 0.047uF 630volts 10% LS=15mm
ManufacturerEPCOS(View more products from this manufacturer)
ModelB32682A6473K000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 17.5 mm (0.689 in)
Height: 9 mm (0.354 in)
Length: 18 mm (0.709 in)
Tolerance: 10 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 0.047 uF
Lead Spacing: 15 mm (0.591 in)
Lead Diameter: 0.8 mm
Number of Pins: 2 Pin
Capacitance - nF: 47 nF
Capacitance - pF: 47000 pF
Termination Style: Radial
Voltage Rating AC: 300 VAC
Voltage Rating DC: 630 VDC
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
