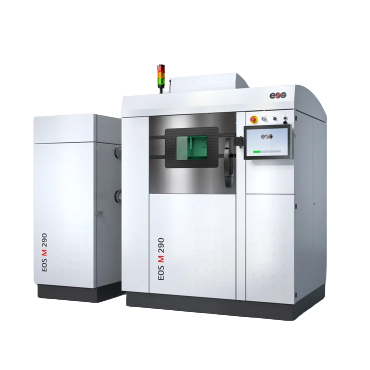

EOS EOS M 290 Metal 3D Printer (250x250x325mm, 7m/s)

Building volume: 250x250x325 mm (9.85x9.85x12.8 in) (height incl. build plate)

Laser type: Yb fibre laser; 400 W

Precision optics: F-theta lens; high-speed scanner

Scanning speed: up to 7.0 m/s (23 ft./sec)

Focus diameter: 100 μm (0.004 in)

Power supply: 32 A / 400 V

Power consumption: max. 8,5 kW/ average 2,4 kW/with platform heating up to 3,2 kW

Inert gas supply: 7.000 hPa; 20 m³/h (102 psi; 706 ft³/h)

Dimensions (WxDxH): 2.500x1.300x2.190 mm (98.4x51.2x86.2 in)

Recommended installation space: min. 4.800x3.600x2.900 mm (189x142x114 in)

Weight: approx. 1.250 kg (2.756 lb)

Software: EOSPRINT incl. EOS ParameterEditor, EOSTATE Everywhere, EOSCONNECT Core, Materialise Magics Metal Package and modules
