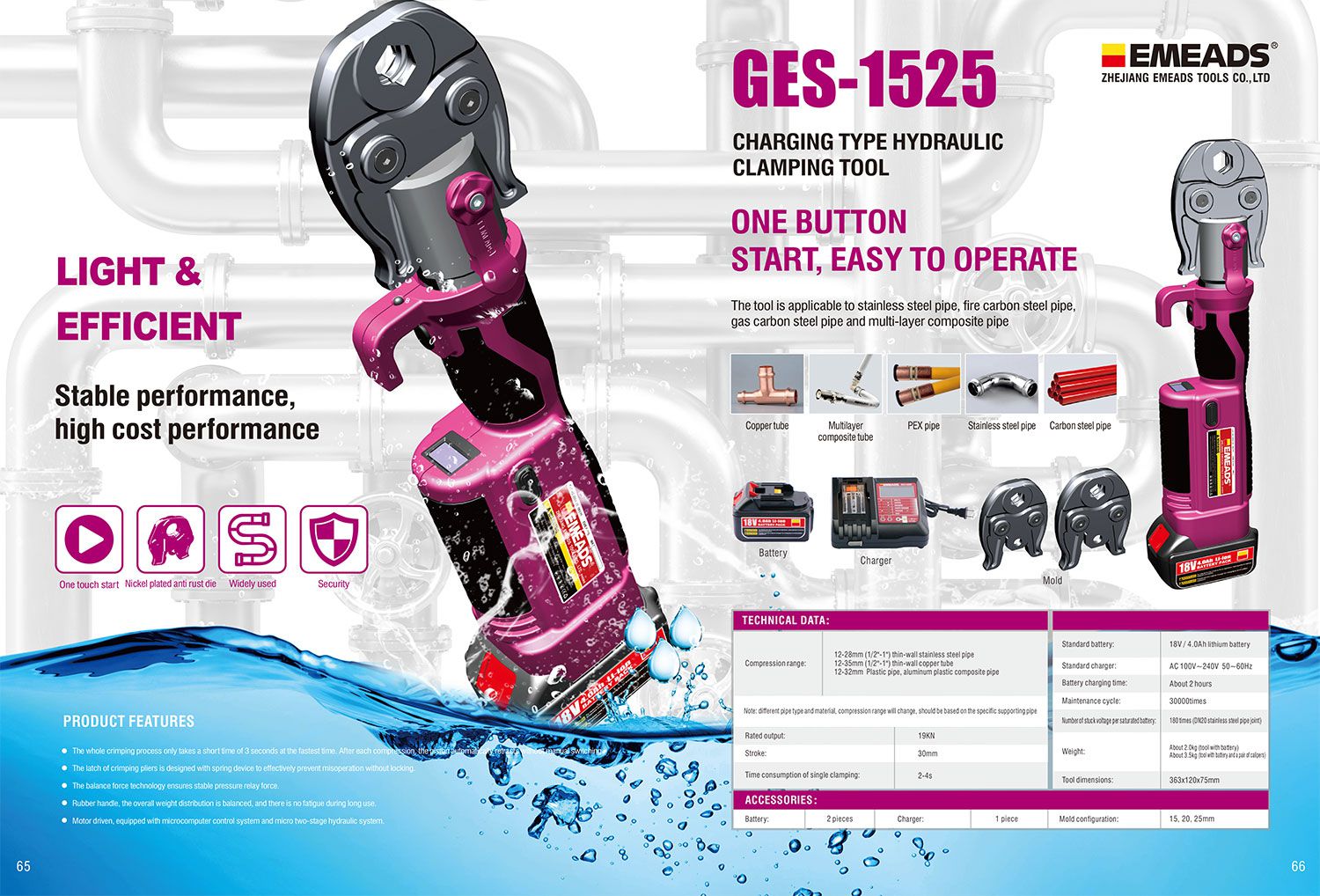

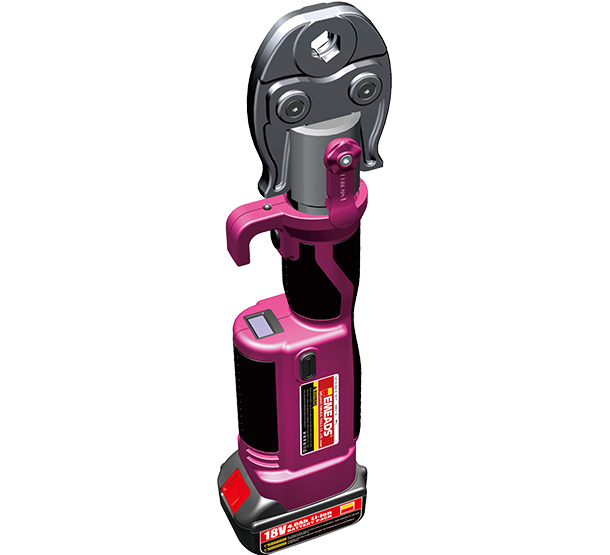

EMEADS GES-1525 Charging Type Hydraulic Clamping Tool (12-35 mm (1/2"-1"),19KN)

Compression range: 12-28 mm(1/2"-1") Thin wall stainless pipe

12-35 mm (1/2"-1")Thin wall copper tube

12-32 mm (1/2"-4") plastic pipe, aluminum plastic composite pipe

Note: different pipe type and material, compression range will change, should be based on the specific supporting pipe

Rated output: 19KN (Piston output)

Stroke: 30mm

Time consumption of single clamping: 2-4

standard battery: 18V / 4.0Ah lithium battery

Standard charger: AC 100V—240V 50-60HZ

Battery charging time: About 2 hours

Maintenance cycle: 30000 times

Weight: About 2.0 kg (tool vith battery)

About 3.5 kg

Tool dimensions: 363*120*75mm

ACCESSORIES:

Battery: 2 pieces

Charger: 1 piece

Mold configuration: 15,20,25mm

Datasheet
