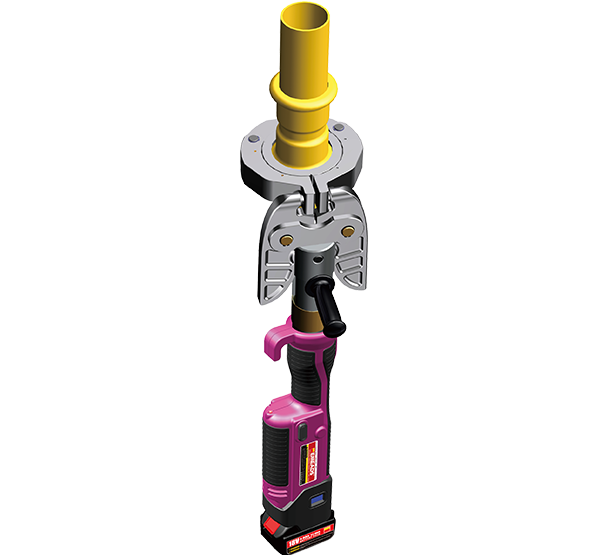

EMEADS GE-15100 Charging Type Hydraulic Clamping Tool (12-108 mm (1/2"-4"), 40KN)

Compression range: 12-54mm(1/2"-2")

12-108 mm (1/2"-4")

Note: different pipe type and material, compression range will change, should be based on the specific supporting pipe

Rated output: 40 KN (Piston output)

Stroke: 95mm

Oil storage: 250ml

Time consumption of single clamping: 3-8s (According to the diameter of the pipe fitting

standard battery: 18V / 4.0Ah lithium battery

Standard charger: AC 100V—240V 50-60HZ

Battery charging time: About 2 hours

Maintenance cycle: 30000 times

Gross Weight: 4.3 kg

Tool dimensions: 525*318*86mm

ACCESSORIES:

Battery: 2 pieces

Charger: 1 piece

Mold configuration: 15,20,25,32,40,50,65,80,100
