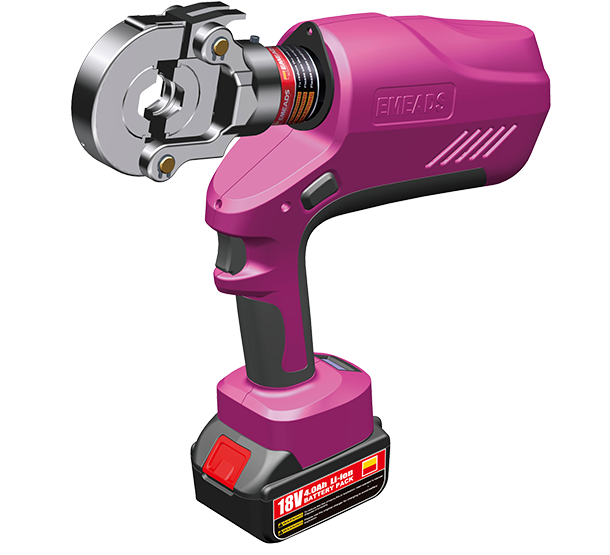

EMEADS EB-1632 Charging Type Hydraulic Clamping Tool (Ø 16-32mm)

Compression range: Ø 16-32mm

Note: different pipe type and material, compression range will change, should be based on the specific supporting pipe

Rated output: 60 KN (Piston output)

Stroke: 17mm

Time consumption of single clamping: 3-6s (According to the diameter of the pipe fitting

standard battery: 18V / 4.0Ah lithium battery

Standard charger: AC 100V—240V 50-60HZ

Crimping times: 320times (Per saturation voltage)

Battery charging time: About 2 hours

Gross Weight: 4.6 kg

Package: Plastic box

ACCESSORIES:

Battery: 2 pieces

Charger: 1 piece

Mold configuration: 15,20,25,32
