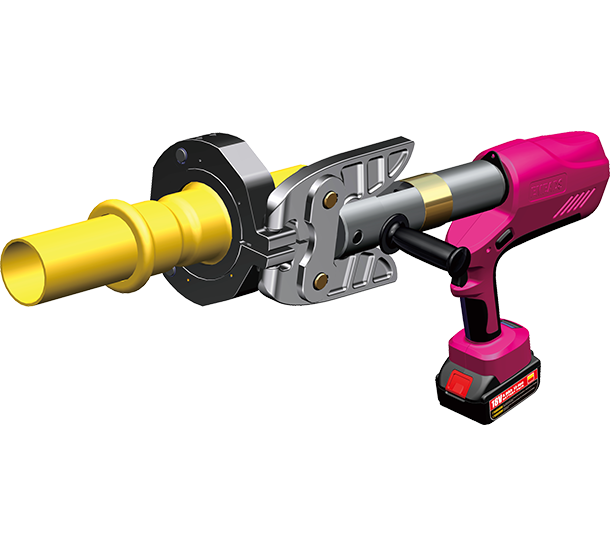

EMEADS EB-15100 Charging Type Hydraulic Clamping Tool (12-108mm (1/2"-4"), 40 KN)

Compression range: 12-54mm (1/2"-2") Thin-wall stainless steel pipe,fire/gas carbon steel pipe

12-108mm (1/2"-4")Plastic pipe, aluminum plastic composite pipe, copper pipe

Note: different pipe type and material, compression range will change, should be based on the specific supporting pipe

Rated output: 40 KN (Piston output)

Stroke: 95mm

Oil capacity: 250 ml

Time consumption of single clamping: 3-8s (According to the diameter of the pipe fitting

standard battery: 18V / 4.0Ah lithium battery

Standard charger: AC 100V—240V 50-60HZ

Battery charging time: About 2 hours

Maintenance cycle: 30000times

Number of stuck voltage per saturated battery: About 360 times((DN20Stainless steel pipe joint)

Gross Weight: 6.5 kg

Tool dimensions: 525x318x86mm

ACCESSORIES:

Battery: 2 pieces

Charger: 1 piece

Mold configuration: 15,20,25,32,40,50,65,80,100mm Stainless steel water pipe (default), gas pipe and fire pipe
