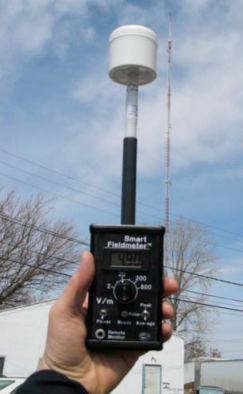

EMCTD RFP-04 Smart Fieldmeter Digital

Applications:
- AM/FM/TV and GSM Cellular stations.
•- Transmitters and CB radios.
•- Cell phones.
•- Microwave ovens.
•- RFID antennas.
•- Industrial, scientific and medical equipment.
•- GTEM cells and antennas for EMC testing of consumer, industrial, automotive and military products.

Specifications:
Option Probe:

Probe PI-03: 3 MHz - 18 GHz, 0.8 – 800 V/m
Probe PI-01: Electric 0.2 MHz - 3 GHz, 0.2 – 600 V/m
Probe PI-01C: Selective Electric 500 - 3000 MHz, 0.4 – 500 V/m
Probe PI-01C: Selective, Electric 500 - 3000 MHz, 0.4 – 500 V/m
Probe PI-01LF: Electric 10 KHz - 3 GHz, 0.2– 600 V/m
Probe PI-01V: Selective, Electric 900-1900 MHz (Dual GSM band), 0.4 – 400 V/m
Probe:PI-01E: Electric, 0.1 MHz - 6 GHz, 0.3 – 600 V/m
