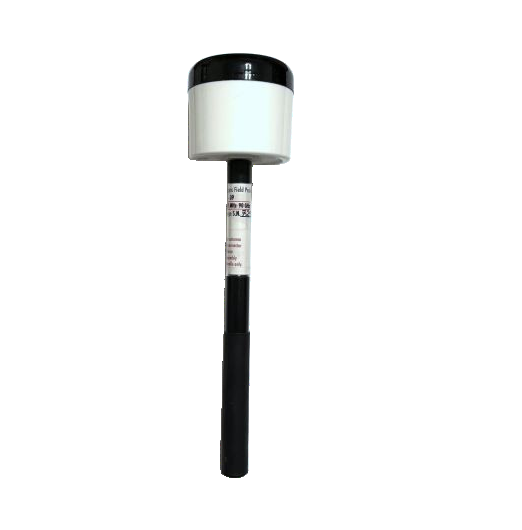

EMCTD PI-09 Isotropic Electric Field Probe (3 MHz-90 GHz, 4-1000 V/m)

Diode-based: 3-Axial isotropic sensor.

Frequency range: 3 MHz-90 GHz.

Field strength range:

4 V/m-1000 V/m.

4 uW/cm2 – 270 mW/cm2

Linearity: +/- 1.5 dB.

Linear power RMS response up to 150V/m (6 mW/cm2)

Frequency resp. (no corr. factors):

3 MHz-1 GHz (+/-2 dB)

1-26 GHz (+6/-0 dB)

26-60 GHz (+/- 6 dB)

60-90 GHz (+0/-10 dB)

• Frequency resp, (with corr. factors): +/- 3.0 dB.

• Measurement uncertainty, including the calibration and rotational deviation +/- 4.5 dB.

Rotational isotropicity: +/-3 dB

Temperature: 5-40 °C,

• Humidity (non-condensing): RH 10-90%.

• Temperature error: 0.05 dB/°C.

• UK NPL traceable calibration.

• UKAS certified up to 75 GHz as of 1.15.2025.

• Probe size (LxD): 12.0"x2.25" (310x58 mm).

• Weight (probe and power unit): 0.17 lb (76 g).

• Operates with RFP-05M/RFP-05 meters
