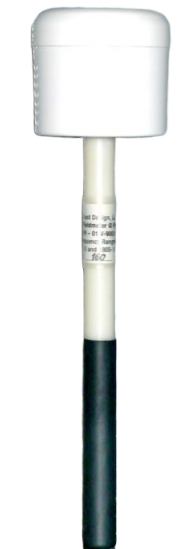

EMCTD PI-01V Isotropic Dual Band Electric Field Probe (900-1900MHz)

• Diode based: 3-Axial isotropic sensor.
• Sensitivity: 0.2 V/m.
• Linearity: +/- 0.5 dB (1-400 V/m),
• Dynamic range: >66 dB (single range).
• Selective frequency range: 900-1900 MHz.
• •Calibration frequency ranges: 925-960 MHz and 1805-1880 MHz
• •In band response flatness:
+/- 1 dB (925-960 MHz),
+/- 1 dB (1805-1880 MHz),
•• Off band attenuation:
3 dB @ 880 MHz, >10 dB @ F<750 MHz,
3 dB @ 1950 MHz, >10 dB @ F>2050 MHz.
• Calibration accuracy (at specified freq.) <1 dB.
• Temperature: 5-40°C,
• Humidity: RH 10-90%, non-condensing.
• Temperature error: <0.05 dB/°C (field > 2 V/m).
• UK NPL or NIST traceable calibration.
• Small size: LxD: 9.0×2.25 inch, 230×58 mm.
• Weight: 0.2 lb, 100 g.
• Operates with both RFP-04 and RFP-05 meters
