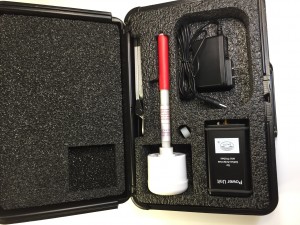

EMCTD OFA-GH Isotropic Ultra Broadband Electric Field Probe (30 MHz-6 GHz; 10 mV/m- 600 V/m)

• Portable isotropic 3-axis EM field antenna with broadband response.

• Wide field dynamic range: 10 mV/m - 500 V/m.

• Noise Level 5 mV/m (BW 3 KHz)

• Broad frequency range: 30 - 6000 MHz.

• Probe directivity: Isotropic.

• Calibration accuracy: +/- 1.5 dB.

• Linearity deviation +/- 1 dB.

• Rotational isotropicity (typ.): +/- (1-2.5) dB (30 - 1000 MHz), +/- (2-5) dB (1000 - 6000 MHz).

• Recommended SA bandwidth: 10 KHz ( min BW 3 KHz )

• Design: Antenna head is mounted on nonmetal handle with detachable output connector.

• Operating temperature: -10 C° to 50° C, RH 10%-90%, non- condensing.

• Temperature error: <0.08 dB/°C.

• Dimensions: Antenna: (LxD) 9.0”x2.25” (225x58 mm); Power unit: (LxWxD), 3.75”x2.25”x1.25” (95x58x32 mm).

• Weight: Antenna: 0.2 lb. (100 g), Power Unit: 0.44 lb. (200 g).

• Battery operation time: 20 hr. NiMHd rechargeable battery. Charge, fast charge and low battery indicator.
