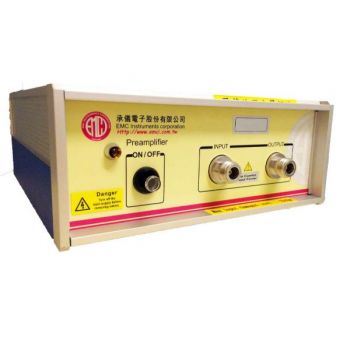

EMC Instruments EMC03640 Low noise Preamplifier (30 MHz ~ 6 GHz)
ManufacturerEMC Instruments(View more products from this manufacturer)
ModelEMC03640
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency Range: 30 MHz to 6GHz
Noise Figure: 2.5 dB max
Gain (dB min): 40 dB min
Gain flatness: +/- 2.5dB
P-1dB Compression Point: +10 dBm min
Operating temperature: -20 ~ +70 °C
Input VSWR/output VSWR: 3.0:1 / 2.0:1
Power Requirements: 110Vac/230Vac
Output connectors: 50-ohm, N Female or SMA female
Size: 217mm*330mm*100mm
Net Weight: 2.8kg
