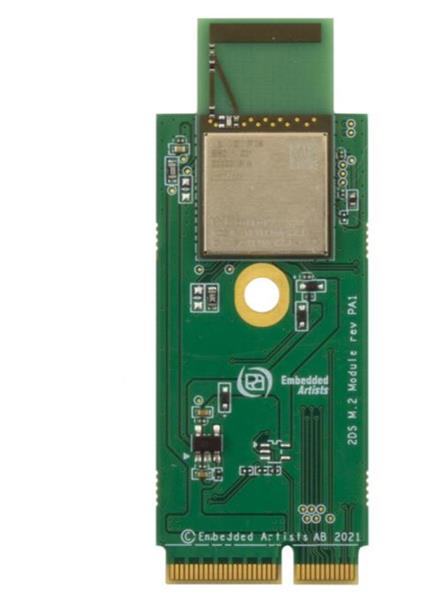

Embedded Artists EAR00386 WiFi Modules 2DS M.2 supporting Wi-Fi 4 b/g/n with 88W8801 chipset and LBWA0ZZ2DS module

Data Rate: 72.2 Mb/s

Frequency: 2.4 GHz

Dimensions: 59 mm x 22 mm x 0.8 mm

Interface Type: SDIO, USB

Protocol Supported: 802.11 b/g/n

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: Integrated

Operating Supply Voltage: 3.3 V

Protocol - WiFi - 802.11: 802.11 b/g/n

Supply Current Receiving: 72 mA

Supply Current Transmitting: 335 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
