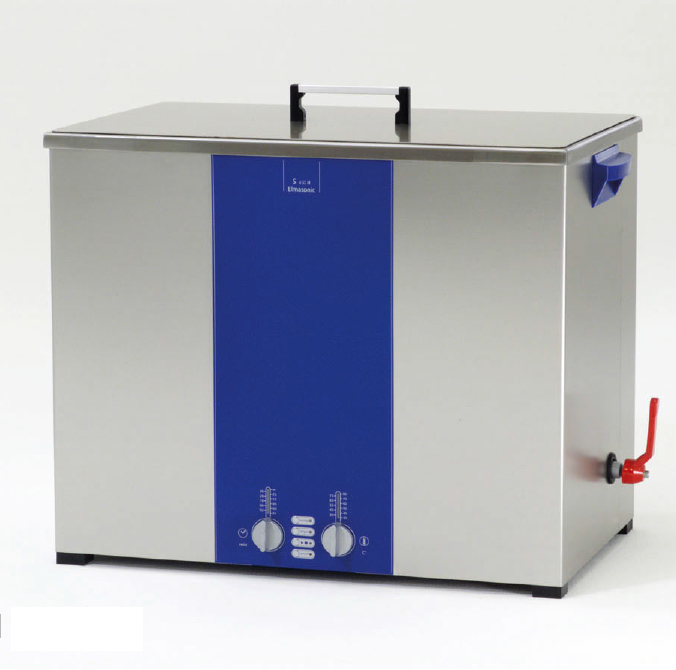

Elma S450H Ultrasonic Cleaners (45 lit , 400W)

Mains voltage (Vac) 220-240 V

Max. filling volume tank (lit. / gal.) 90 / 23.78

Ultrasonic frequency (kHz) 37

Power consumption total 2800

Ultrasonic power effective (W) 800

Ultrasonic peak performance max.**(W) 3200

Heating power (W) 2000

Unit outer dimensions W / D / H (mm) 715 / 570 / 467

Tank internal dimensions W / D / H (mm) 600 / 500 / 300

Basket internal dimensions W / D / H (mm) 545 / 450 / 190

Elma Order Nos.

Elmasonic S 900 H (220-240 V) 100 3946

Basket stainless steel 100 9035

Cover (stainless steel) 100 9058

Further accessories on request

Weight (kg) 42

Material tank stainless steel

Material casing stainless steel

Drain 1/2“

Carrying handles (plastic) √

CE-compliant √

Protection class IP 20

Option (necessary):

- Cover: 100 9058

- Stainless-steel basket: 100 9035
