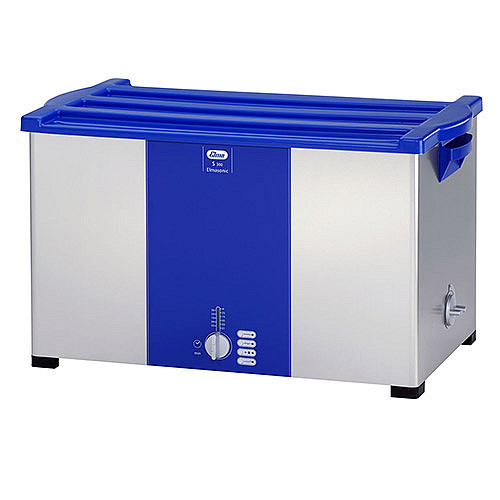

Elma S300 Ultrasonic Cleaners (28 lit, 300W)

Mains voltage (Vac): 220-240 V

Ultrasonic frequency (kHz) 37

Power consumption total S 300 (W) 300

Power consumption total S 300 H (W) 1500

Ultrasonic power effective (W) 300

Ultrasonic peak performance max.**(W) 1200

Heating power (units w. heating) (W) 1200

Unit outer dimensions W / D / H (mm) 568 / 340 / 321

Tank internal dimensions W / D / H (mm) 505 / 300 / 200

Basket internal dimensions W / D / H (mm) 455 / 250 / 115

Elma Order Nos.

Elmasonic S 300 (220-240 V) 107 1163

Elmasonic S 300 (115-120 V) 107 1164

Elmasonic S 300 H (220-240 V) 107 1162

Elmasonic S 300 H (115-120 V) 107 1165

Basket stainless steel 100 4271

Cover (plastic) 100 3287

Further accessories on request

Max. filling volume tank (lit. / gal.) 28 / 7.4

Weight (kg) 11.0

Material tank stainless steel

Material casing stainless steel

Drain 3/8“

Protection class IP 20

Option (necessary):

- cover: 100 3287

- Stainless-steel basket: 100 4271
