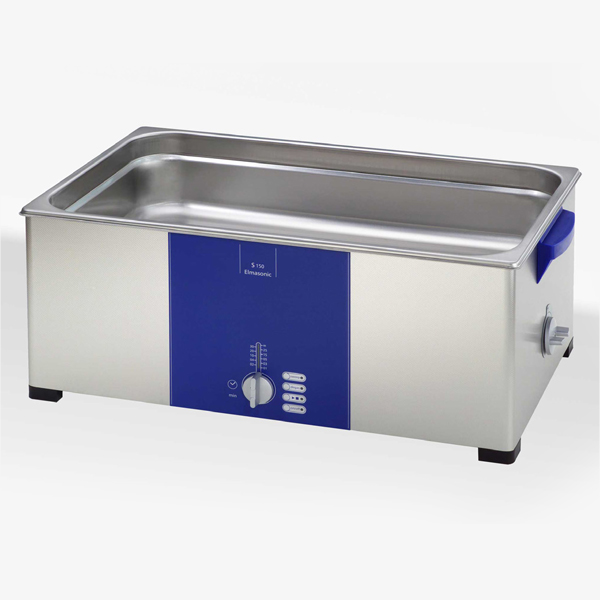

Elma S150 Ultrasonic Cleaners (14 lit, 300W)

Mains voltage (Vac) 220-240 V

Ultrasonic frequency (kHz) 37

Power consumption total S 10 (W) 300

Ultrasonic power effective (W) 300

Ultrasonic peak performance max.**(W) 1200

Unit outer dimensions W / D / H (mm) 568 / 340 / 224

Tank internal dimensions W / D / H (mm) 505 / 300 / 100

Basket internal dimensions W / D / H (mm) 455 / 250 / 55

Max. filling volume tank (lit. / gal.) 14 / 3.7

Elma Order Nos.

Elmasonic S 150 (220-240 V) 107 1278

Elmasonic S 150 (115-120 V) 107 1279

Cover (plastic) 100 3287

Carrier DIN-medicine basket 100 8962

Further accessories on request

Weight (kg) 10.0

Material tank stainless steel

Material casing stainless steel

Drain 3/8“

Protection class IP 20

Option (necessary):

- cover: 100 3287

- Stainless-steel basket: 103 1243
