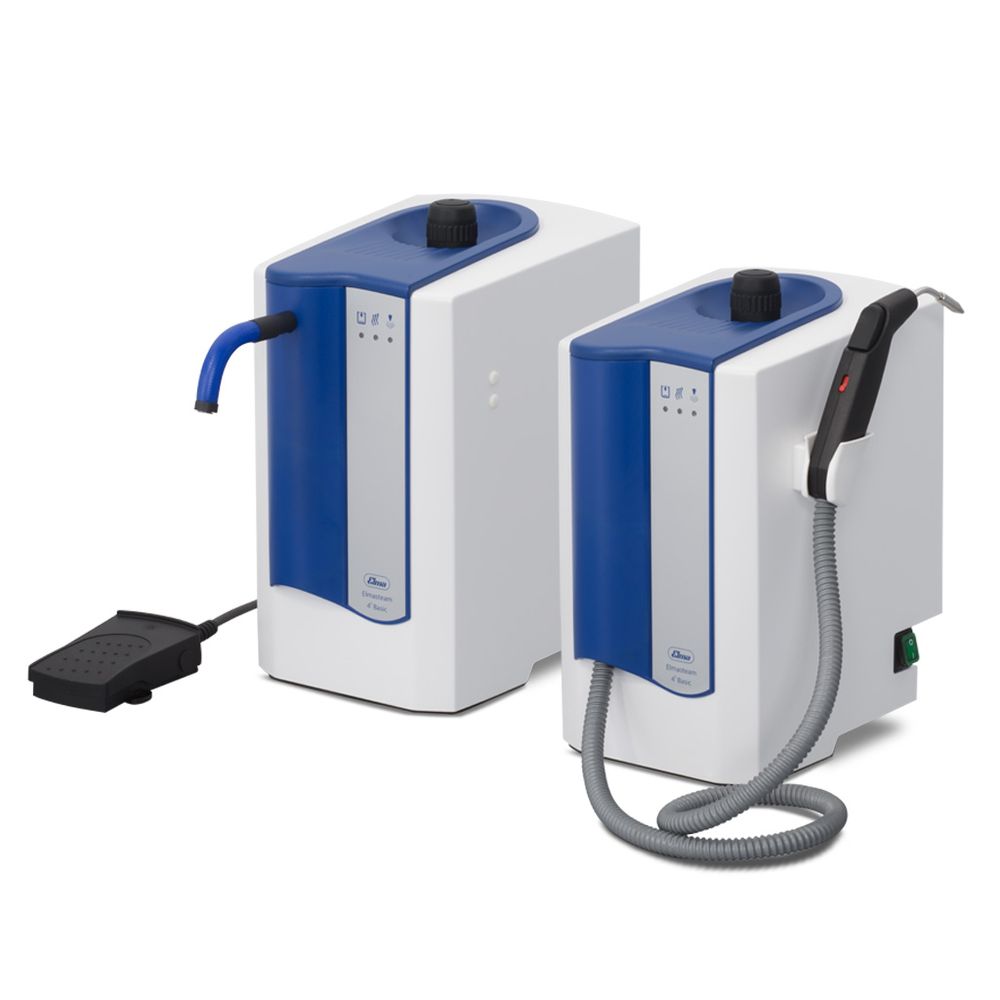

Elma Elmasteam 4.5 basic steam jet cleaner

Mains frequency (Hz) 50 / 60

Max. power consumption 220-240V (W) 2800

Max. power consumption 150-120V (W) 1650

Nominal power at 230 V (W) 2130

Nominal power at 120 V (W) 1540

Case material PC/ABS

Weight empty (kg) 6.75

Elma Order Nos.

Elmasteam 45

basic 220-240 V

with fixed nozzle and foot switch

106 8874

Elmasteam 45

basic 115-120 V

with fixed nozzle and foot switch

107 2646

Elmasteam 45

basic HP 220-240 V

with hand piece (1.3 m)

106 8907

Elmasteam 45

basic HP 150-120 V

with hand piece (1.3 m)

107 2645

Wall bracket 105 8677

Pressure tank volume (litres) 4

Max. filling volume (litres) 3.3

Operating pressure (bar) 4.5

Dimensions with hand piece W x D x H (mm) 290 x 320 x 420

Dimensions with fixed nozzle W x D x H (mm) 250 x 320 x 420

Steam temperature in the tank (°C) 155

Steam temperature at the no
