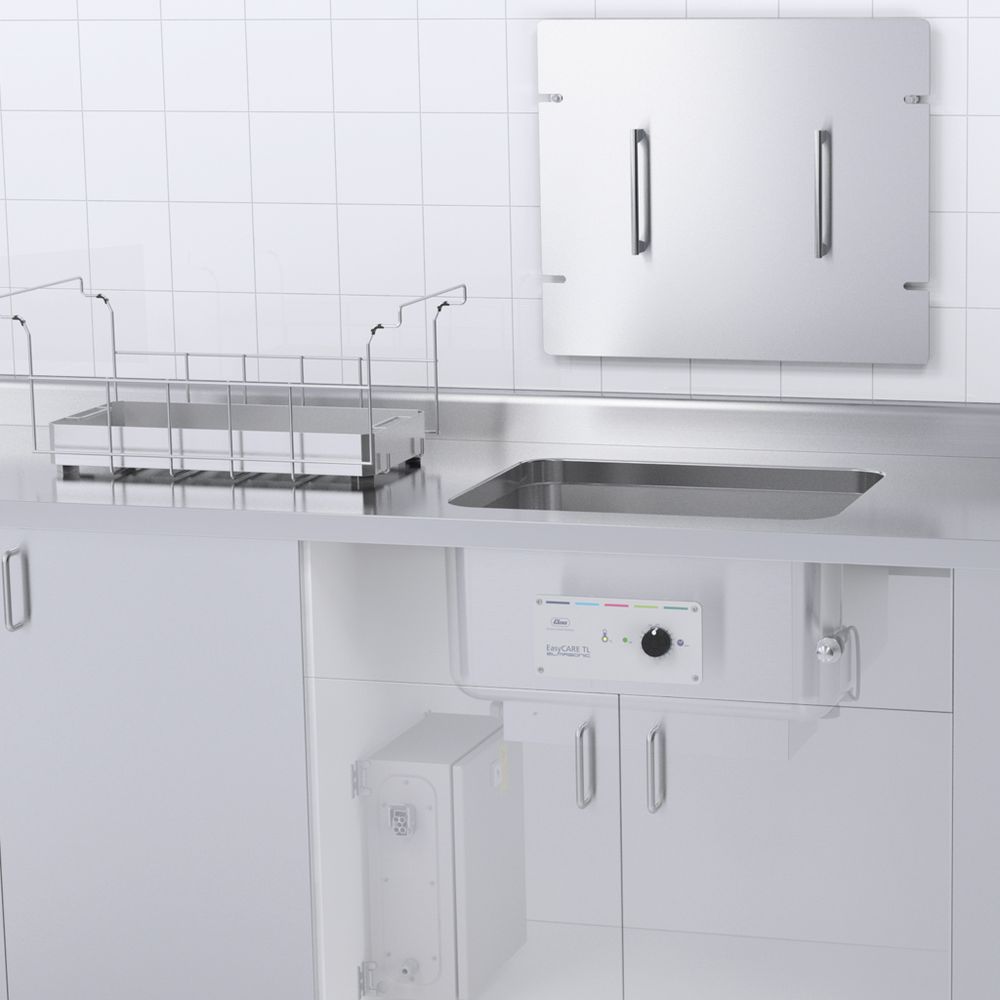

Elma EasyCARE TL Ultrasonic Cleaners

Elmasonic EasyCARE TL

Mechanical data

Working volume of through (L)* 30/50 *Depending on the filling level marks

Internal dimensions of trough W/D/H (approximate in mm) 600x450x293

Material tray (Stainless steel) 1.4301

Outflow (") 1 1/2

Max. basket loading (kg) 15

Weight

Ultrasonic bath (kg) 15,5

Generator (kg) 8,5

Operator control unit (kg) 0,8

Cover (kg) 2,3

Basket carrier (kg) 1,2

Electrical data

Mains voltage (V~) 230

Ultrasound frequency (kHz) 37

Effective ultrasound output (W) 600

Max. peak ultrasound output* (W) 2400

Timer (minutes) 1-15 & continuous operation
