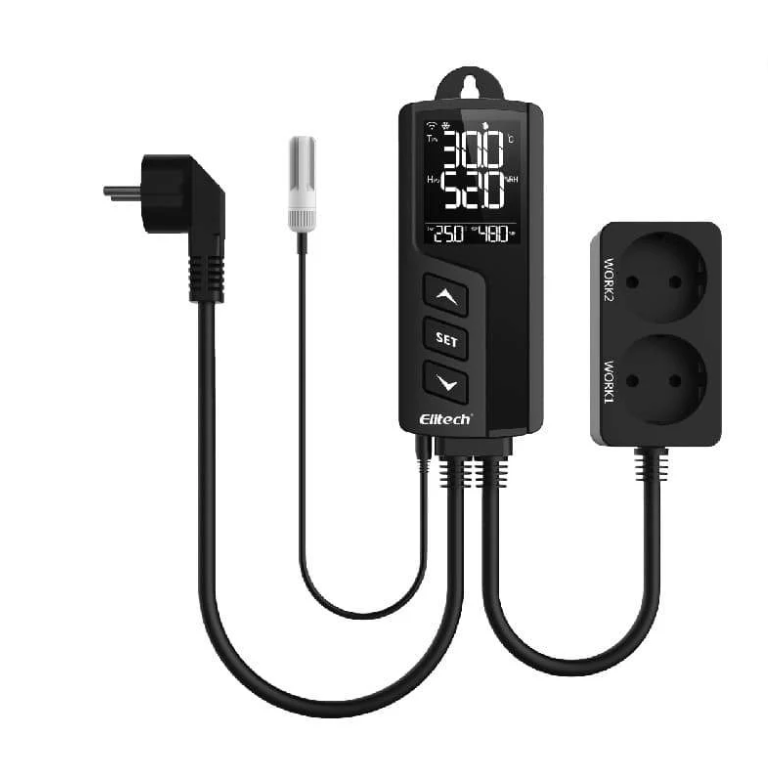

Elitech STC-1000WiFi TH Digital Temperature Controller (-5~70°C, WiFi 2.4GHz)

Working voltage: 100~240VAC, 50/60Hz

Temperature measurement range: -5~70°C / 23~158°F

Temperature control range: -5~70°C / 23~158°F

Temperature measurement accuracy: ±0.5°C /±1°F

Temperature resolution: 0.1°C /0.1°F

Humidity measurement range: 5~99%RH

Humidity control range: 5~99%RH

Humidity measurement accuracy: ±5%RH

Humidity resolution: 0.1%RH

Relay contact output capacity: 10A (resistive) / 100 ~ 240VAC

Output power:

2200W (resistive)  in total/200W (inductive) per channel @220VAC,

1100W (resistive) in total/100W (inductive) per channel @110VAC

Total power consumption: <5W

Working environment temperature: 0°C~60°C / 32~140°F

Storage temperature: -10°C~70°C / 14~140°F

Length of power probe: 1.5m

Length of output power probe: 0.3m

Enclosure size: 165 x 60 x 32 mm

Length of sensor cable: 2m (including probe length)

Best viewing angle of LCD screen: 6 O'clock direction

Wi-Fi type*: 2.4G (not support 5G)
