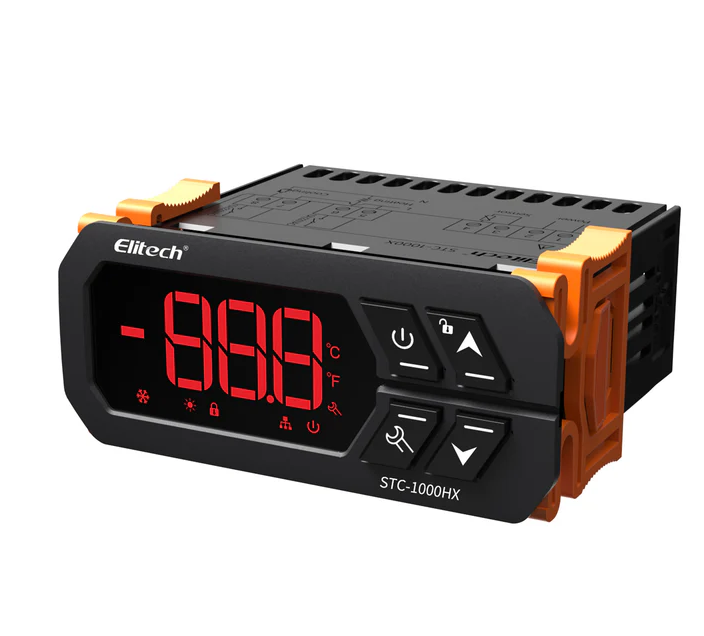

Elitech STC-1000HX Temperature Controller (-50℃~120℃)

Power supply: Based on:220V+10%.50/60Hz;110V+10%,50/60HZ;24VAC/DC: 12VAC/DC;*

Measuring range: -50°C~120°C/-55°F~248°F

Temperature Resolution: 0.1℃

Temperature accuracy:  +1°C(-20°C~50°C)/±2°F, ±1.5°C/±3°F(others)

Temperature controlling range: -50~99℃

Total Power consumption: <3W

Operating Ambient Temperature: 0°C~60°C

Storage Temperature: -30°C~75°C

Relative Humidity: 20%~85%RH (non-condensing)

Relay Contact Output Rating: Cooling/Heating:10A/250VAC

Sensor: NTC (10KΩ/25°C, B value = 3435K)

Waterproof Grade of Front Panel: IP65

Panel Size: 80 x35 mm

Mounting size: 71x29mm

Product Size: 80 x 35 x 66 mm

Sensor Cable Length: 2m (probe length included)

Manual
