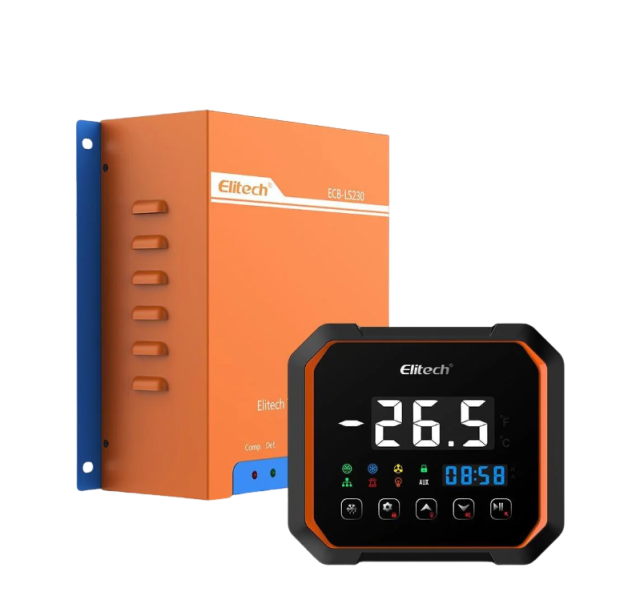

Elitech ECB-LS230-WiFi(5HP) Three Phase Split Electrical Control Panel (5HP, -49℃～119℃, WiFi 2.4GHz)

ECB-LS230-Wifi: dual in-house temperature sensor input, refrigeration, defrosting, fan and buzzer alarm, WiFi 2.4GHz

Applicable compressor power: 5HP

Power Supply: 380VAC; 50/60HZ

Temperature Measurement Range: -49~119℃

Temperature Control Range: -40~119℃

Temperature Measurement Accuracy: ±1℃ (-20~50℃); ±1.5℃ (Others)

Resolution: 0.1℃/ 1℉

Current measurement range: 2~80A

Current display resolution: 0.1A

Accuracy of current detection: ±2A (0~30A), ±5% (within the nominal range of other transformers)

Compressor delay: 0~10 minutes

Output capacity of relay contacts: 5A/240VAC

Maximum allowable continuous output current of compressor circuit: 14A (5HP)

Maximum allowable continuous output current of defrosting circuit: 14A (5HP)

Maximum allowable continuous output current of fan circuit: 7A (5~15HP)

Working environment: 0℃~40℃

Sensor type: NTC (10KΩ/25℃, B value 3435K)

Sensor wire length: 3 pcs sensors at 5m/8m (including probe length)

Communication: RS-485 + Bluetooth

Network: WiFi 2.4GHz
