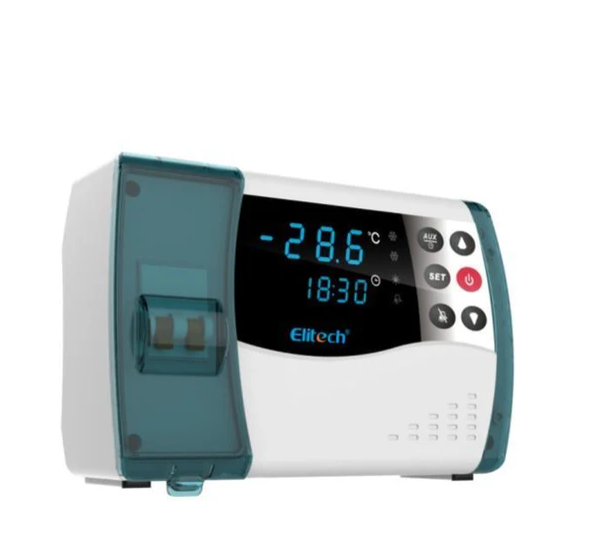

Elitech ECB-1000PLUS CLOUD Single Phase Electrical Control Panel (-49~119℃, WiFi 2.4GHz)

Power Supply: 100-256VAC; 50/60HZ

Overall Power Consumption: <12W

Temperature Measurement Range: -49~119℃

Temperature Control Range: -40~99℃

Temperature Measurement Accuracy: ±1℃ (-20~50℃); ±1.5℃ (Others)

Resolution: 0.1℃/ 1℉

Relay Capacity (Compressor): 50A/240VAC; 3HP/220VA, 1.5P/110V;

Relay Capacity (Defrost): 30A/220VAC

Relay Capacity (Fan): 16A/220VAC

Relay Capacity (Light): 16A/220VAC

Relay Capacity (Alarm): 10A/220VAC

Product Size: 261*167.5*92 mm

Storage Temperature: -20℃～75℃

Sensor Type: NTC (10KQ/25 °C, B-3435K)

Communication Mode: RS-485 + WiFi(2.4GHz)
