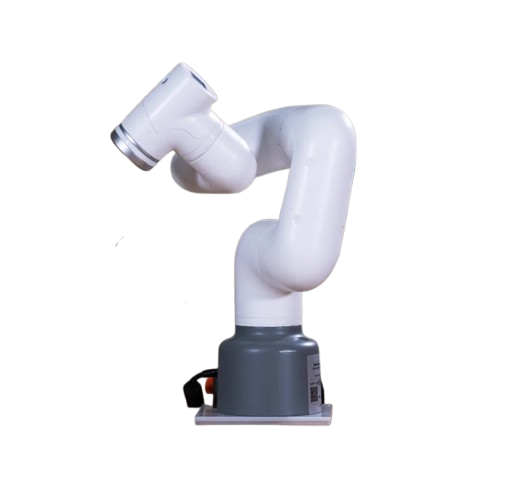

Elephant Robotics myCobot 320 Pi Robot arm

Degree of Freedom: 6

Payload: 1 kg

Working Range: 350 mm

Repeatability: ±0.5 mm

Weight: 3.3 kg

Power Input: 24V, 120W

Working Temperature: 0–45°C

Communication: USB

Software Parameter

System Version: Ubuntu 18.04

ROS/Python: Built-in

Blocky Visual Programming: Built-in

Camera: Available for any camera

ModelBus RTU: Ethernet

Electric Parameter

SOC: Broadcom BCM2711

CPU: 64-bit 1.5 GHz quad-core

Bluetooth/Wireless: Yes

USB: USB3.0 ×2; USB2.0 ×2

HDMI Port: microHDMI ×2

IO Port: IN ×6; OUT ×6

Emergency Stop Button: Yes

Teach Pendant / Keyboard / Mouse: Optional
