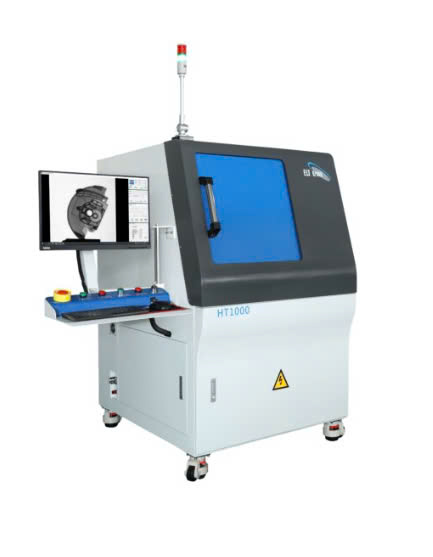

Electronicstalk HT1000 Casting X-ray Inspection (432mm*432mm, 400x400mm)

X-Ray Tube

Tube Style: Sealed Tube

Tube Voltage: 160KV

Tube Current: 2.5mA

Optical Tube Power: 400W

Detail Resolution: 0.4-0.8mm

Cooling Mode: Air Cooling

Plat Panel Detector

Effective Imaging Area 432mm*432mm

Pixel size: 2816×2816mm

A/D change: 16Bit

Sample Table

Axis X: 400mm

Axis Y: 400mm

Sample Table: 500*500mm

Effective Visual Range: 400*400mm

Software and Image Processing Capabilities

Measuring Function: The bubble crack of the test sample was determined by software

Software Processing Power: Image inversion, sharpening, histogram, binarization for better analysis X-RAY picture

Image Enhancement: Automatic image enhancement, Image reverse color, Image edge smoothing, Texture

Software Protection Capability: When the machine is unmanned, the X-ray is automatically disconnected after 20 minutes, thus extending the life of the X-ray tube

Radiation Safety

The machine surface is less than 1usv/h: <1usv/h

Safety door automatic interlock protection function: when the X-ray is turned on, the safety door automatically locks for protection

X-Ray Subject

Size: L1005mm*W1180mm*H1625mm

Weight: about 1400kg

Power

Power Supply Mode: AC110-230VAC,50/60Hz

Applications:

Comprehensive inspection and testing of cast components

Ensures structural integrity and quality performance

Detection of internal defects in casting materials

Verification of dimensional accuracy and consistency
