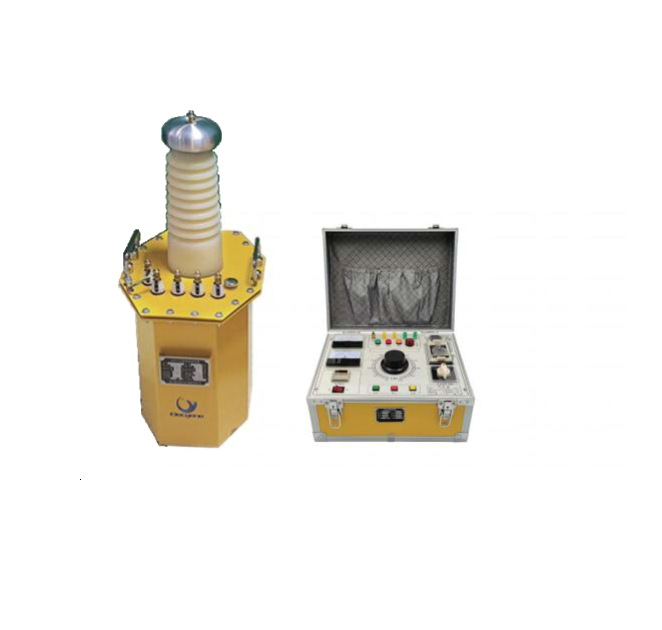

Elecgene YTB-20(5/50) High-Voltage Test System (5 kVA)
ManufacturerElecgene(View more products from this manufacturer)
ModelYTB-20(5/50)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Rated capacity: 5 kVA
Power supply: 200~240VAC, 50/60Hz
Output high voltage: 0~50kV AC; 0~70kV DC (optional)
Output current: 0~100mA AC; 0~35mA DC (optional)
Ratio: 500
Insulation material: Insulating oil
Duty cycle: 5 min ON / 15 min OFF at 5 kVA
Control unit
Net weight: 21 kg
Net size: 440×340×230 mm
Transformer
Net weight: 42 kg
Net size: 325×255×640 mm
