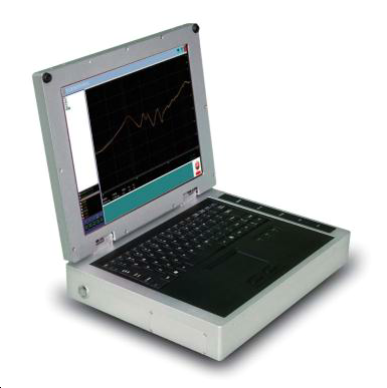

Elecgene WDT-200 Sweep Frequency Response Analyser (SFRA)
ManufacturerElecgene(View more products from this manufacturer)
ModelWDT-200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output voltage: Vpp~25V automatic adjustment during test
Input impedance: 1MΩ (built-in 50Ω matching resistance in the test channel)
Frequency sweep range: 10Hz~16MHz (30MHz optional)
Output impedance: 50Ω
Measuring dynamic range: –120dB ~ 20dB
Frequency accuracy: 0.00001
Power supply: 180~270V AC, 50/60Hz
Environmental conditions: Operating temperature –10°C~50°C; Humidity ≤90%
Net size: 310×240×75mm
Net weight: 4.5kg
Total weight: 15kg (including case and test cable set)
