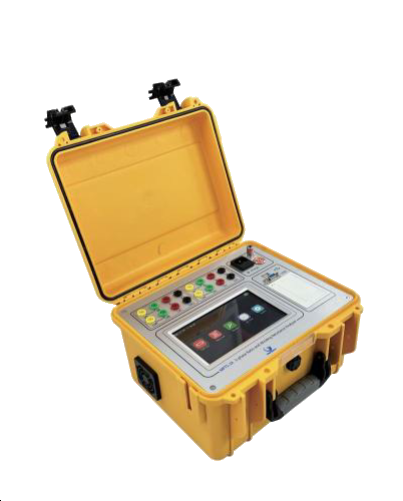

Elecgene MFTS-2A 3-phase Ratio and Winding Resistance Analyzer

Winding resistance test

Measurement methods: 3-phase wye, delta or 1-phase

Current and resistance ranges:

20A (500μΩ ~ 0.1Ω)

10A (1.0mΩ ~ 0.3Ω)

5A (10mΩ ~ 1.0Ω)

1A (0.2Ω ~ 6.0Ω)

0.1A (2.0Ω ~ 60Ω)

≤10mA (30Ω ~ 50kΩ)

Resistance accuracy: ±0.2%rdg + 2digit

TTR test

Turns ratio range: 0.9 ~ 10000

Turns ratio accuracy:

±(0.1%rdg + 2digit) (≤500)

±(0.2%rdg + 2digit) (501 ~ 3000)

±(0.3%rdg + 2digit) (3001 ~ 10000)

Resolution ratio:

0.9 ~ 9.9999 (0.0001)

10 ~ 99.999 (0.001)

100 ~ 999.99 (0.01)

1000 ~ 9999.9 (0.1)

10000 and above (1)

General

Power supply: 200–240V AC, 50/60Hz

Built-in lithium battery: capacity 7.8Ah

Environmental conditions: Operating temperature –10°C ~ 50°C; Humidity ≤90%, non-condensing

Net size: 318×280×204mm

Net weight: 6.5kg (without measuring cables)
