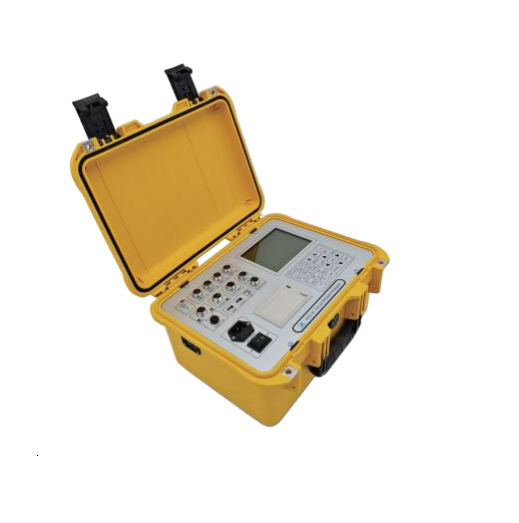

Elecgene HVS-50T Circuit Breaker Analyser System (with PIR test)

Time fracture: 12 metal contacts; 25V; current limit 50mA

Safety performance: Insulation resistance >2MΩ; Leakage current <3.5mA; Dielectric strength AC 1500V 50Hz 1min

Time test: Range 0–16s; Accuracy ±(0.001% ±2 words); Resolution 0.1ms

Travel test: Range 0–800mm; Accuracy 0.5% ±0.1mm; Resolution 0.1mm

Speed test: Range 0.01–20.00m/s; Accuracy 1%; Resolution 0.01m/s

DC power supply: Adjustment range 10–265V; Max instantaneous current 20A; Accuracy ±(0.01 +1 word); Load change rate ≤0.01

PIR test: Pre-insertion resistance measurement; Automatic detection during close operation; Evaluate transient suppression resistor performance

Store and print: Built-in high-speed thermal printer; Fast and silent; Real-time data storage

Power supply: AC 200–240V 50/60Hz

Environmental conditions: Operating temperature –10°C~50°C; Humidity ≤90%

Net size: 380×280×200mm

Net weight: 7kg (without measuring cables)

Application: For high and medium voltage circuit breakers; Support timing, travel, speed, bounce and PIR tests
