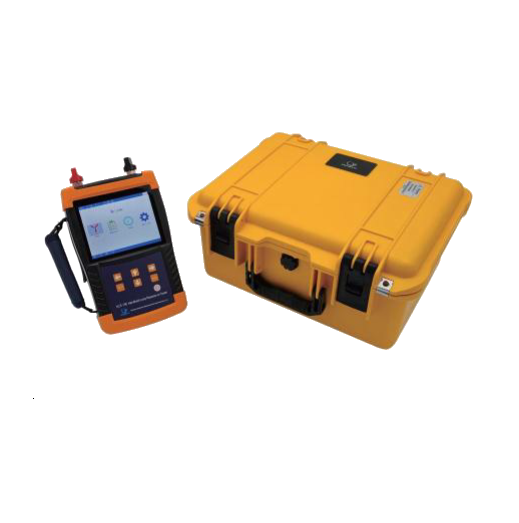

Elecgene HLR-200 Hand-held 200A Micro- ohmmeter (200A)

Output current: 200A, 100A, 80A, 50A, 30A (optional 220A)

Measuring range:

200A, 0~1000µΩ

150A, 0~2000µΩ

100A, 0~5000µΩ

80A, 0~8mΩ

50A, 0~10mΩ

30A, 0~20mΩ

Accuracy: ±(reading × 0.5% + 1µΩ)

Resolution ratio: 0.1µΩ

Display digit: 4 and a half

Test power supply: Constant current limit voltage, about 2V

Input voltage: Maximum 5V

Measuring time: Fast measurement 10–60 seconds optional

Battery: 9Ah power lithium battery

Testing times: More than 500 times (full charge, fast measurement mode)

Test cable: Resistance less than 8mΩ

Power supply: Built-in lithium battery or external charger, charger input 100~240VAC, 50Hz/60Hz

Charging voltage: 12.6V

Charging current: ≤3A

Charging time: About 3 hours

Auto shut off: 5 minutes automatic shutdown without operation

Environment temperature: –10°C~50°C

Relative humidity: ≤90%, no dew

Net weight: 1.7kg (exclude test cables)

Net size: 246×156×62mm
