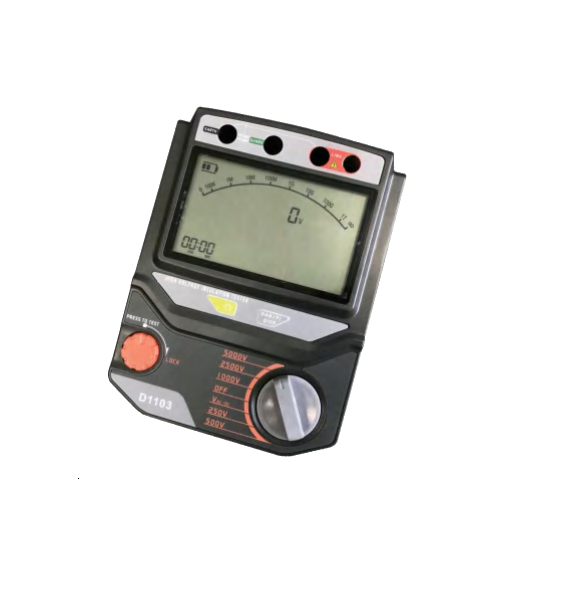

Elecgene D1103 Utility Insulation Resistance Tester

Test voltage: 250V, 500V, 1000V, 2500V, 5000V

Test voltage accuracy: +20%, -10%

Measuring range:

250V: 0.25～600MΩ

500V: 0.5～1.2GΩ

1000V: 1.0～2.2GΩ

2500V: 2.5～120GΩ

5000V: 5.0～500GΩ

Insulation resistance accuracy: 0.25MΩ～80GΩ: ±5%rdg±3dgt;  80～500GΩ: ±20%rdg

Short circuit current: 1.5mA± 0.5mA

Voltage measurement range: DC±30～±600V; AC 30～600V(50/60Hz)

Voltage measurement accuracy: ± 2%rdg± 3dgt

Voltage measurement resolution: DC-1V, AC-5V

Insulation resistance: ≥1000MΩ / DC 1000V (between circuit and outer case)

Battery capacity: 5200mAh

Net size: 150×202×70mm

Net weight: 1.4kg (including battery)
