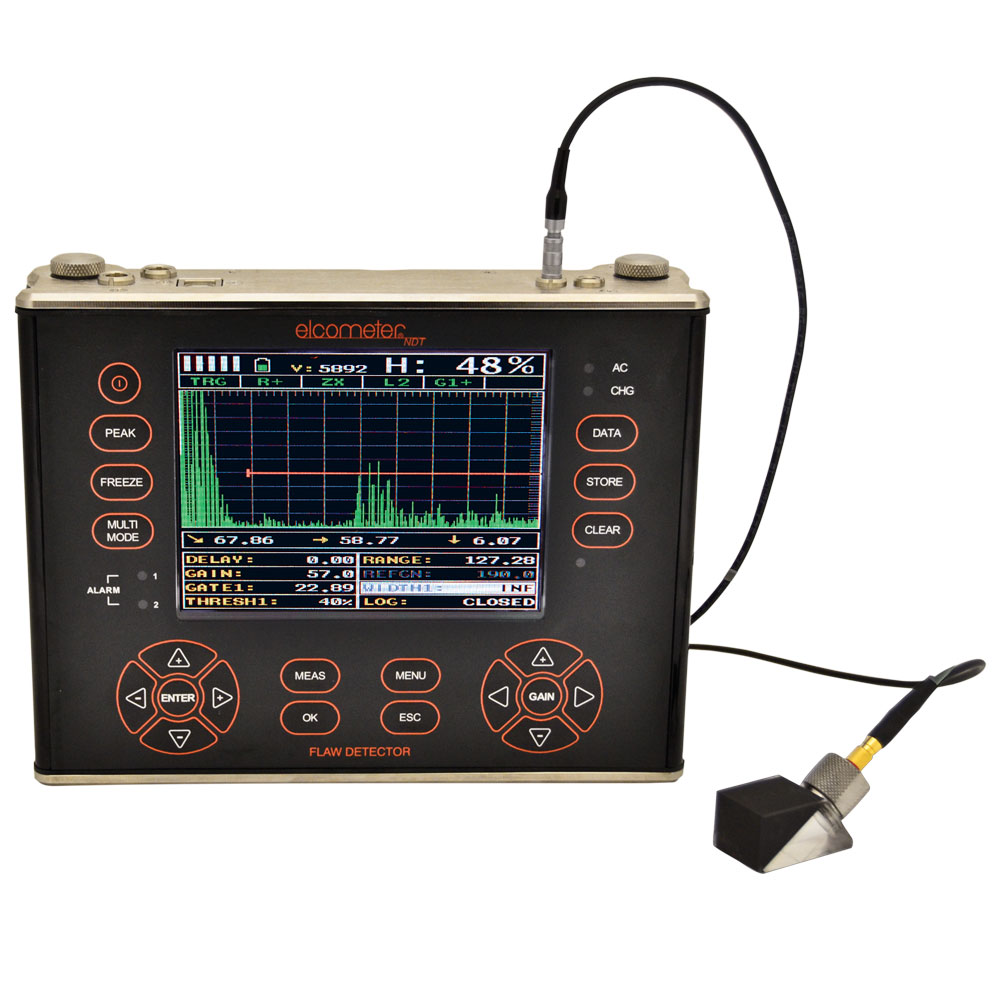

Elcometer FD800DL+Bench Top Flaw Detectors (0.01~30480mm, A/B-scan, Thrupaint, datalogging, RS232, Broadband,narrow bands)

A-Scan display: + Rectified, - Rectified, Full Waveform (RF)
Flaw detection modes: TRIG, DAC, AWS, TCG, Zero Crossing, Flank, Peak
Measurement Mode: PE, PETP (Temp Compensation), EE (ThruPaint™), EEV, CT (Coating) & PECT
Measurement Rate (Thickness Mode)
+ Manual: 4 readings per second
+ Scan mode: 32 readings per second
+ Scan bar display: 6 readings per second
Measuring Range: PE: 0.63 - 30480mm, PETP: 0.63 - 30480mm, EE: 1.27 - 102mm, EEV: 1.27 - 25.4mm, CT: 0.01 - 2.54mm, PECT: 0.63 - 30480mm, PECT: 0.01 - 2.54mm
Measurement Accuracy2: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.01mm (0.001 inch)
Velocity Calibration Range: 256 - 16,000m/s (0.0100 - 0.6300in/ms)
Data logging:6Gb internal & up to 64Gb external SD slot
Frequency Bands: Broadband 1.8 - 19 MHz, Four narrow bands at 1, 2, 5, 10MHz
Battery Type: 6 x AA alkaline
Battery Life: 12 hours
Operating Temperature: -10 to 60ºC
Size (w x h x d): 216.0 x 165.0 x 70.0mm
Weight (including batteries): 2.04 kg
Transducer Connector Type: LEMO
RS232 Interface: Bi-directional
Packing List: Elcometer NDT FD800DL or FD800DL+ gauge, couplant, carry case, user manual, test certificate, 3 x AA batteries, ElcoMaster® software, transfer cable

Note: A transducer is not suppied with the Gauges, must be ordered separately
