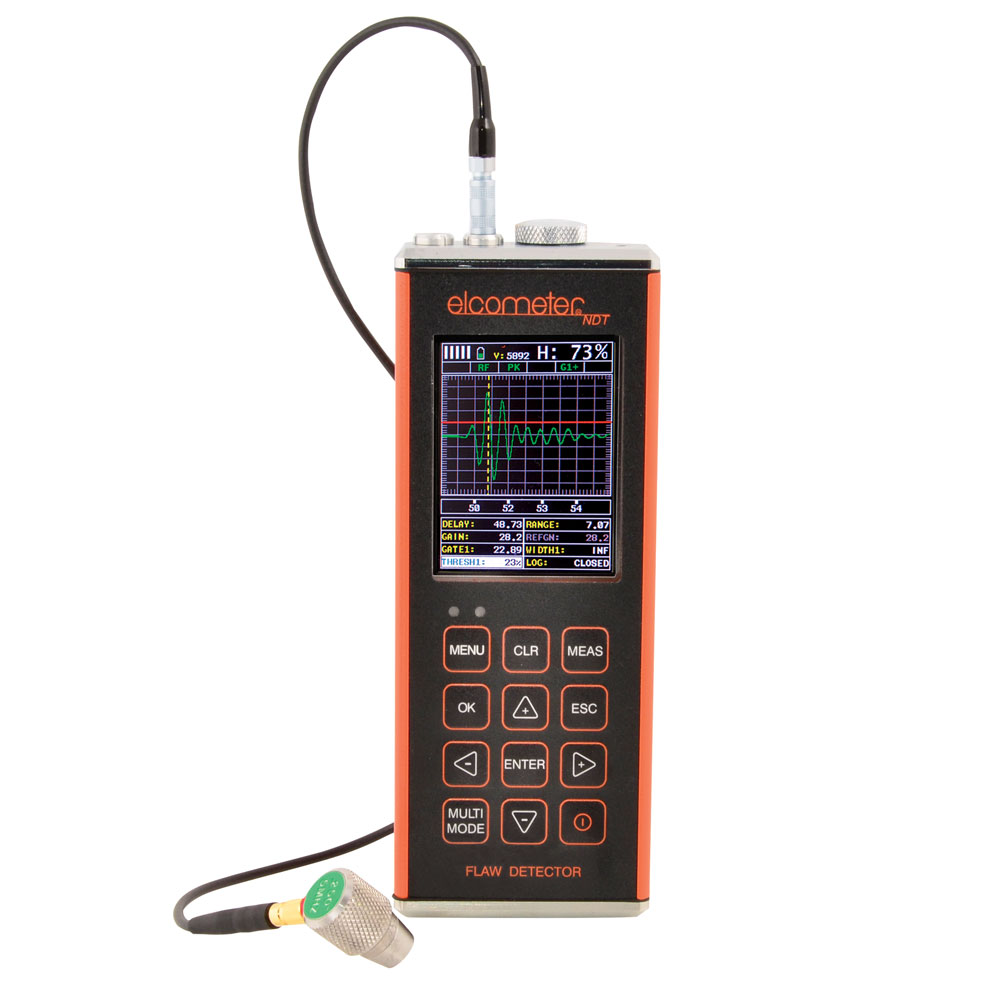

Elcometer FD700DL+ Mini Flaw Detectors (0.01~30480mm, A/B-scan, Thrupaint, datalogging, RS232, Broadband,narrow bands)

A-Scan display: + Rectified, - Rectified, Full Waveform (RF)
Flaw detection modes: TRIG, DAC, AWS, TCG, Zero Crossing, Flank, Peak
Measurement Mode: PE, PETP (Temp Compensation), EE (ThruPaint™), EEV, CT (Coating) & PECT
Measurement Rate (Thickness Mode)
+ Manual: 4 readings per second
+ Scan mode: 32 readings per second
+ Scan bar display: 6 readings per second
Measuring Range: PE: 0.63 - 30480mm, PETP: 0.63 - 30480mm, EE: 1.27 - 102mm, EEV: 1.27 - 25.4mm, CT: 0.01 - 2.54mm, PECT: 0.63 - 30480mm, PECT: 0.01 - 2.54mm
Measurement Accuracy2: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.01mm (0.001 inch)
Velocity Calibration Range: 256 - 16,000m/s (0.0100 - 0.6300in/ms)
Data logging: 8,000 with A/B-scan image & gauge settings; 210,000 - coating, material, min, max thickness
Frequency Bands: Broadband 1.8 - 19 MHz, Three narrow bands at 2MHz, 5MHz, 10MHz
Battery Type: 3 x AA alkaline
Battery Life: 12 hours
Size (w x h x d): 63.5 x 165.0 x 31.5mm
Weight (including batteries): 397g (14oz)
Transducer Connector Type: LEMO
RS232 Interface: Bi-directional
Packing List: Elcometer NDT FD700+ or FD700DL+ gauge, couplant, carry case, user manual,
test certificate, 3 x AA batteries, ElcoMaster® software, transfer cable

Note: A transducer is not suppied with the Gauges, must be ordered separately
