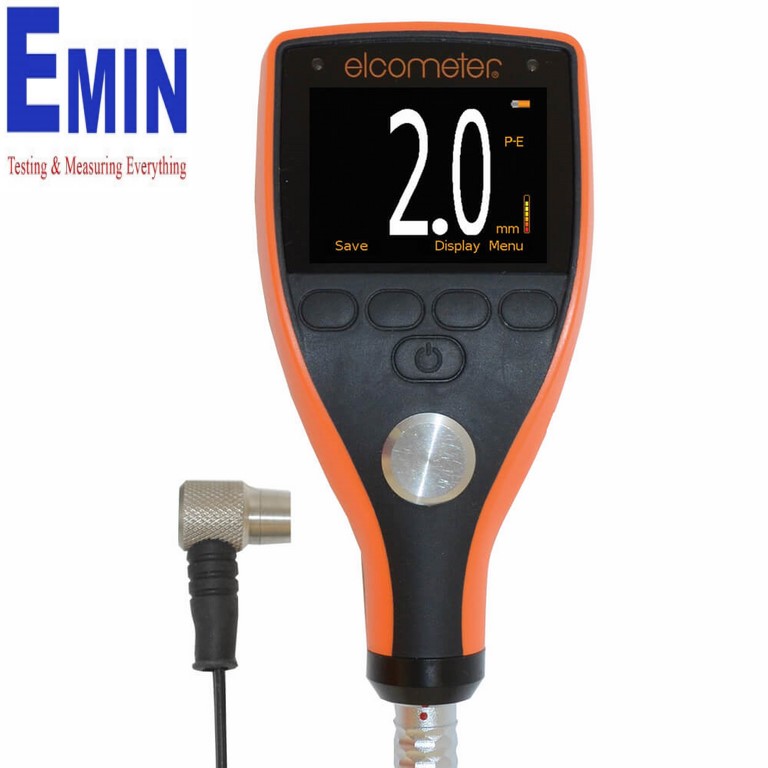

Elcometer C204C-TXC Steel Ultrasonic Material Thickness Gauge (0,63 - 500mm, IP54)

Manufacture: Elcometer
Model: C204C-TXC
Origin: England
Warranty: 12 month

Measurement &Thickness range: Pulsed Echo (PE): 0.63 - 500mm
Measurement Accuracy: ±1% or 0.1mm - whichever is the greater
Resolution: 0.1mm
Tough, impact, waterproof & dust resistant; equivalent to IP54
Measurement Rate: 4Hz (4 readings per second)
Operating Temperature: -10 to 50°C
Data Output: USB
Power Supply: 2 x AA batteries
Battery Life 2 Alkaline: Approx. 15 hours Lithium: Approx. 28 hours
Gauge Weight: 210g - including batteries, without transducer
Gauge Dimensions: 145 x 73 x 37mm - without transducer
Packing List: Elcometer 204 steel ultrasonic material thickness gauge, transducer, ultrasonic couplant,
carry pouch, screen protector, wrist harness, 2 x AA batteries, operating instructions,
calibration certificate.

Datasheet
