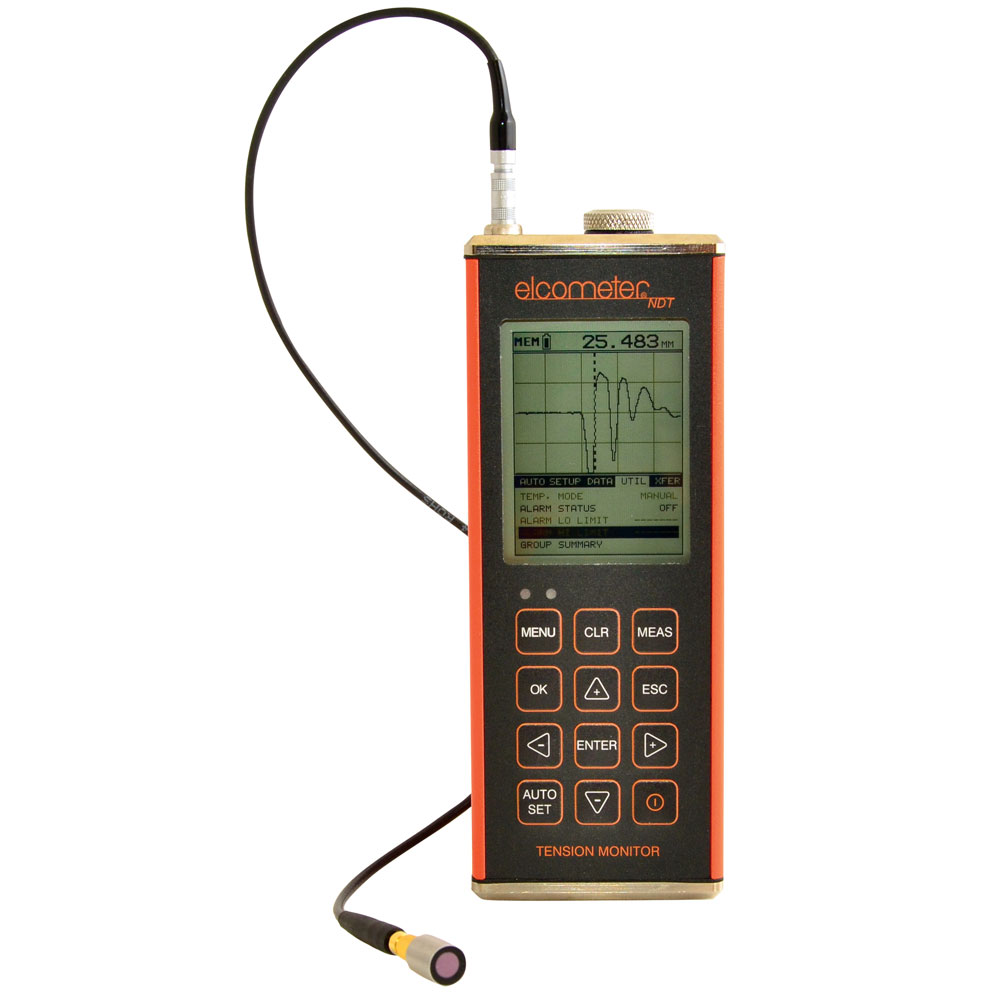

Elcometer BG80TDL Bolt Tension Monitors (LEMO, Datalogging, RS232, temperature compensation)

Measurement Mode: PE & PE with Gate
Measurement Rate: Manual: 4 readings per second
Measuring Range: 25.4 – 2440mm (1 – 96 inches)
Measurement Accuracy2: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.0001mm (0.00001 inch)
Velocity Calibration Range: 250 - 10,000m/s; 0.0492 - 0.3937in/μs
Data logging: 8,000 readings
Calibration Options: fixed, single & 2 point
Transducer Probe Type: single element
Transducer Frequency Range: 1 - 10MHz
Display: 1/8 VGA
Units (selectable): mm or inches
Battery Type: 3 x AA alkaline
Battery Life (approximate): 150 hours
perating Temperature : -10 to 60ºC (14 to 140ºF)
Size (w x h x d): 63.5 x 165 x 31.5mm
Weight (including batteries): 383g
Transducer Connector Type: LEMO
Packing List: Elcometer NDT BG80DL or BG80TDL gauge, couplant, carry case,
user manual, test certificate, 3 x AA batteries, DakView software, RS232/DB9 & USB/DB9 transfer cable

Note: A transducer is not suppied with the Gauges, must be ordered separately
