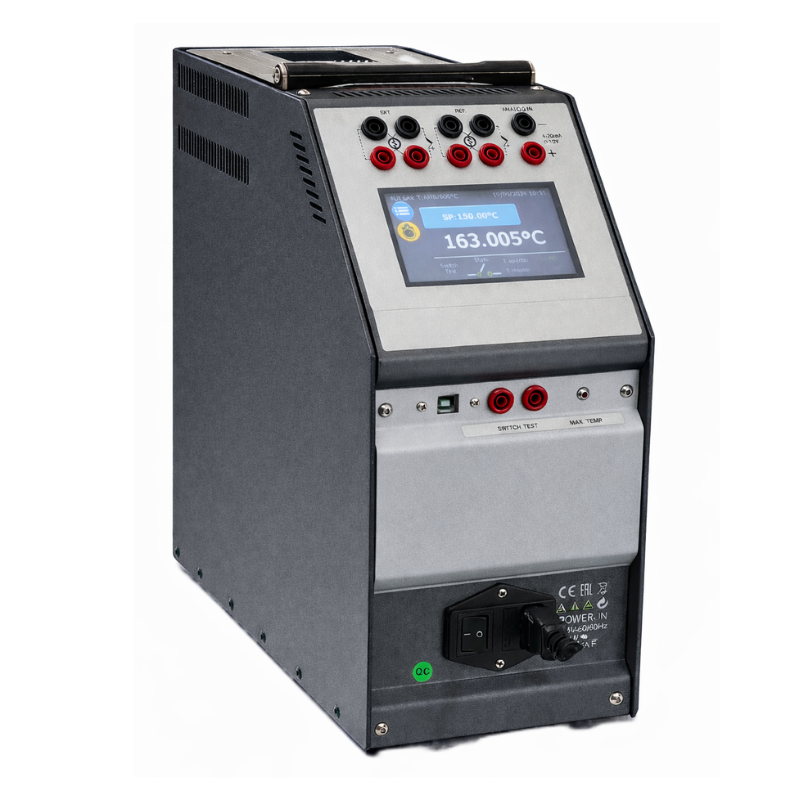

EiUK TCT150 -TC Dry Block Temperature Calibrator (-50C ~ 150 ºC)

Temperature calibrator with inputs for reference sensor and sensor-under-test 4-20 mA and mV

Ambient Temperature @ 23ºC: -30°C to 150°C

Ambient Temperature @ 0ºC: -50°C to 150°C

Stability: ± 0.02°C

Uniformity

Axial: ± 0.08°C

Radial: ± 0.02°C

Accuracy

With Internal Sensor: ± 0.15°C

With External Sensor SRS (*): ± 0.07°C

Display

Type: Touch Screen

Set Point Range: -50°C to 150°C

Resolution: User-selectable 0.1, 0.01, 0.001°C

Units: User-selectable °C, °F, K

Calibration Volume

Immersion Depth: 135 mm

Insert Diameter: 35 mm

Standard Insert Supplied: 1 insert with 3.5, 4.5, 5.5, 6.5, 8.5, 10.5 mm pockets

Heating Time: Ambient to 150°C: 30 min (including time to stability)

Cooling Time: Ambient to -50°C: 60 min (including time to stability)

Thermocouple Input

Type: K, N, R, S, J, E

Range: 0 to 1300°C

Accuracy: ± 1°C (including CJC error)

Resolution: User-selectable 0.1, 0.01°C

RTD Input

Type: Pt100 (3/4 wires) IEC

Range: -100°C to 700°C

Accuracy: ± 0.3°C

Resolution: User-selectable 0.1, 0.01°C

General

Computer Interface: USB Type B

Switch Test: Yes, with automatic log of switch open and switch closed

Ramp: Yes, fully programmable

Weight: 8 kg

Dimensions: 160 × 340 × 330 mm

Power Requirement: 115 or 230 V – 50/60 Hz

Power: 300 VA

Notes: Requires SRS sensor and special UKAS matching calibration. Long-term drift not included.

Scope of Supply: Each PTB150 is supplied with: Power cable, USB cable, switch test lead, standard insert, insert removal tool, traceable calibration certificate, and instruction manual.

The TCT150 is a low range portable dry block temperature calibrator capable to generate temperature below ambient.
