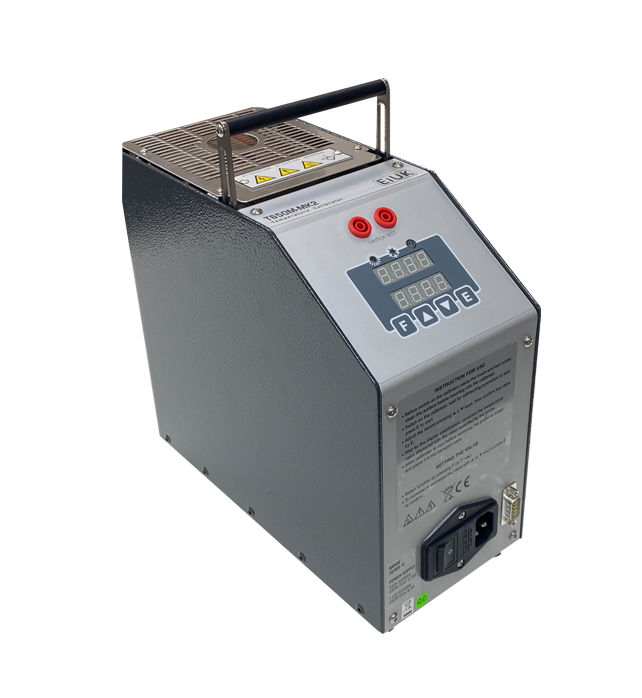

EiUK T650M-MK2 Dryblock Temperature Calibrator (35 ~ 650°C)

Approval: DNV Certificate A-13537

Range: 35 to 650 °C

1 year accuracy: ±0.5°C full range

2 year accuracy: ±0.9°C full range

Stability: ±0.3°C full range

Resolution: 0.1°C/0.1°F full range

Display: 2 lines LCD-°C or °F user-selectable

Block Diameter: 26 mm

Block Depth: 150 mm

Insert: Standard insert A , 4 holes : Ø 3,2-5-7-10,5 mm

Heating Time: 50°C to 650°C in 30 min including stabilization time

Cooling Time: 650°C to 100°C in 30 min

Ramp: Yes fully programmable

Switch test: Yes with automatic capture/saving of contact close/opend

Interfaces: RS232

Power Requirement: 100-230 VAC, 50/60 Hz, Automatic switching- 600 W

Size: 130 x 260 x 280 mm (H x W x D)

Weight: approx. 6 kg

Scope of supply: Temperature calibrator, standard insert, tool for insert removal, switch test leads, instruction manual, calibration certificate
