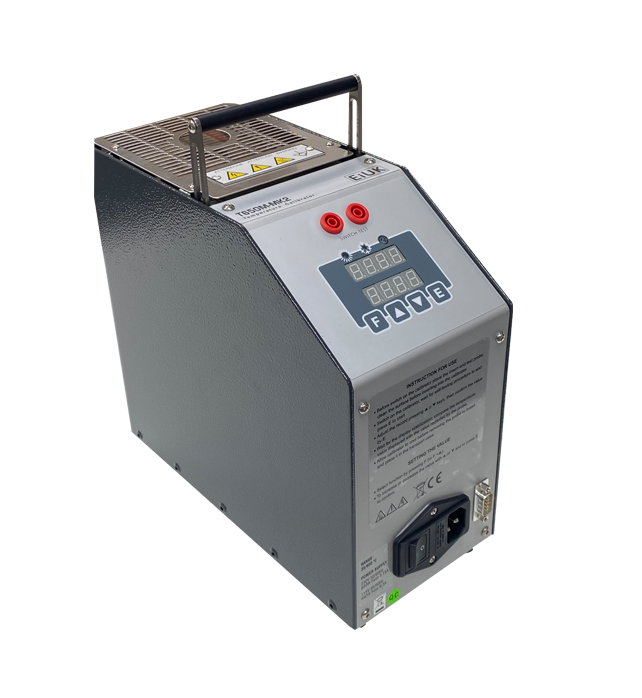

EiUK T140M-MK2 Dryblock Temperature Calibrator for low temperature (-24 ~140°C)

Range (@20C): -24 to 140 °C

1 year accuracy: ±0.25°C full range

2 year accuracy: ±0.6°C full range

Stability: ±0.05°C full range

Resolution: 0.1°C/0.1°F full range

Display: 2 lines LCD-°C or °F user-selectable

Block Diameter: 19 mm

Block Depth: 104 mm

Insert: Standard insert A , 4 holes : Ø 4.8 mm, Ø 6.4 mm, Ø 6.4 mm, Ø 3.3 mm

Heating Time: 20°C to 200°C in 20 min including stabilization time

Cooling Time: 20°C to -20°C in 20 min including stabilization time

Ramp: Yes fully programmable

Switch test: Yes with automatic capture/saving of contact close/open

Interfaces: RS232

Power Requirement: 100-230 VAC, 50/60 Hz, Automatic switching- 80 W

Size: 130 x 260 x 280 mm (H x W x D)

Weight: approx. 4.9 kg

Scope of supply: Temperature calibrator, standard insert, tool for insert removal, switch test leads, instruction manual, calibration certificate
