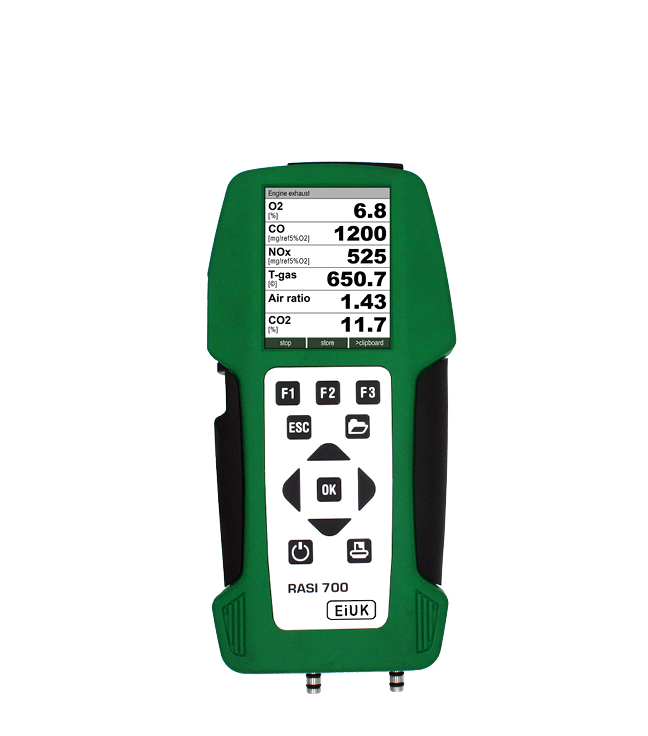

EiUK RASI 700 Industrial flue gas and emissions analyser

Combustion and Environmental calculations

O2 Normalization: NOx and CO automatically displayed in mg/m3 and or ppm with user define % O2 reference

True NOx: (NO+NO2) corrected and reported in term of NO2 as per EA guidelines

Lambda ( Air Ratio): 1 to 9.99

Digital

Digital Communication: mini-USB, SD, Infrared, Bluetooth™ (data transfer to smartphone, tablet or PC)

Data logging: Manual or automatic up to 16000– Data export to SD card in CSV format

Site management: Up to 4000 sites, with ID number and address

General

Display: 3.5” TFT graphic colour display

Power: Internal Li-Ion Rechargeable batteries (15 hours continuous operation)

AC adapter: wall-plug grid power supply, 100 - 240 Vac / 50 ... 60 Hz

Charging: Trough MINI USB port ( USB cable and wall plug supplied)

IP Protection: IP 30

Dimensions/weight: 110 x 225 x 52 mm , approx. 750 g

Operating Temperature: 5 to 45 °C , 95 % HR non condensing

Storage Temperature: 0-50 °C

Approvals: CE, TUV SUD EN 50379-2 ( O2, CO, NO)

Probe: Modular gas sampling probe, 365 mm immersion depth, incl. cone, heat shield, thermocouple NiCr-Ni (TI) Tmax 850 °C and NO2/SO2 special triple hose 2.7 m for simultaneous gas sampling, pressure and temperature measurement

Measurements
