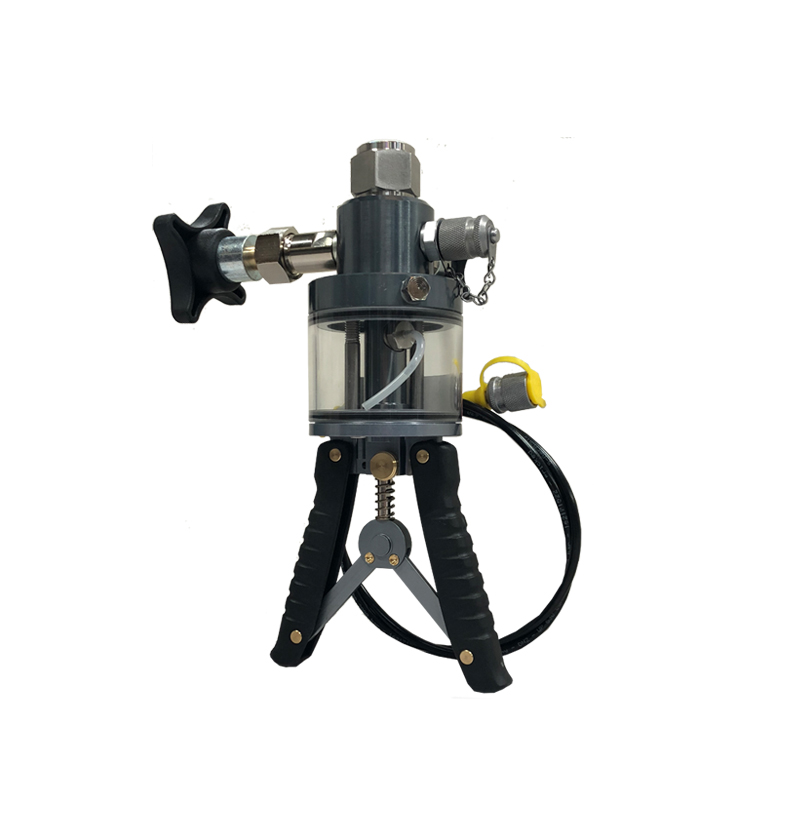

EiUK PGS700 Hydraulic Calibration Hand Pump for high pressure (0 ~ 700 bar/10000 psi)

General:

Pressure Range: 0 to 700 bar/10000 psi

Medium: Mineral oil based hydraulic fluid or distilled water, like used for flat irons (e.g. from local super market

Fluid Reservoir: Volume > 200 cm³, can be filled during stroking

Test hose: 1 mt high pressure flexible hose, detachable ( other length available on request)

Dimension: approx. 270 x 160 x 120 mm (without test hose)

Weight: approx. 1.3 kg (without test hose)

Material: Aluminium, brass, ABS, Plexiglas, NBR

Process Connections : Model PGS700:

Reference Port: G1/2 swivel adapter

Test point: Test hose with G1/4 swivel adapter

Process Connections: Model PGS700-N14:

Reference Port: 1/4″ NPT (F) adapter

Test point: Test hose with 1/4″ NPT (F) adapter
