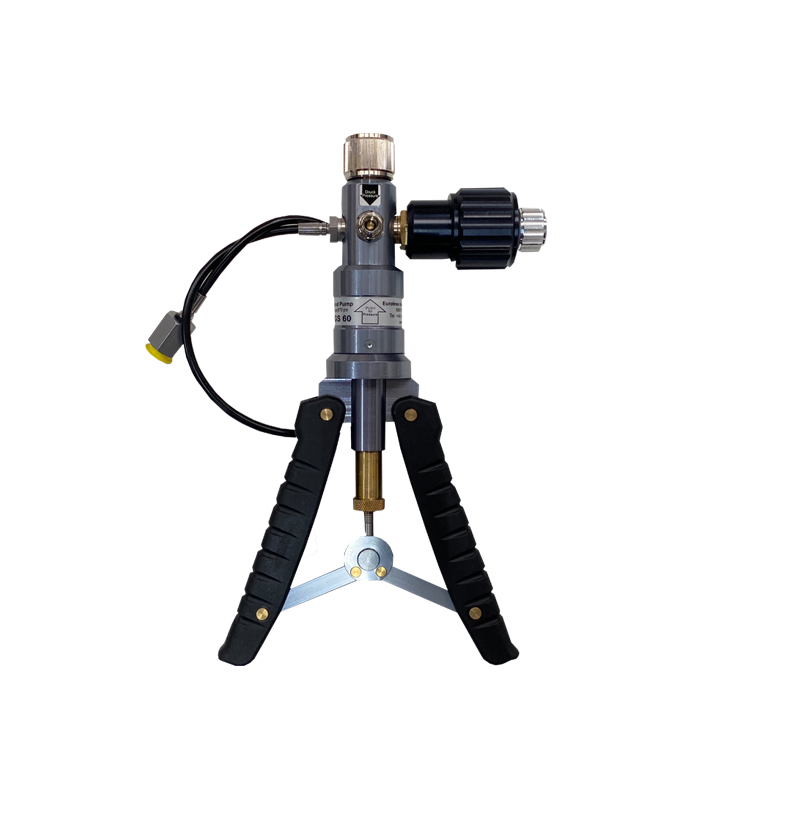

EiUK PGS60 Hand Held Pressure Test Pump (0 ~ 60 bar/870 psi)

General:

Pressure Range: 0 to 60 bar/870 psi

Vacuum Range: 0 to -0.95 bar/-13.7 psi

Medium: Air

Test hose: 0.5 meter

Dimension: approx. 290 x 185 x 65 mm

Weight: approx. 960 g

Material: Aluminium, brass, ABS, NBR

Process Connections : Model PGS60-OEM:

Reference Port: G1/2 swivel adapter

Test point: Test hose with G1/4 swivel adapter

Process Connections: Model PGS60-OEM-G14:

Reference Port: G1/4 swivel adapter

Test point: Test hose with G1/4 swivel adapter

Process connections: Model PGS60-OEM-N14:

Reference Port: 1/4″ NPT Female

Test Point: Test hose with 1/4″ NPT F adapter
