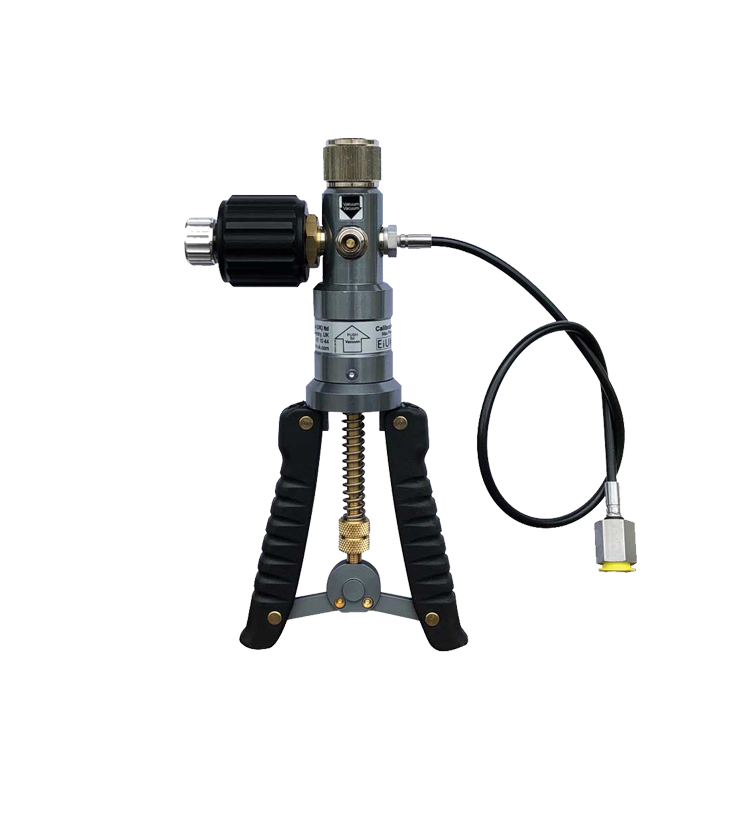

EiUK PGS40 Pressure Calibration Hand Pump (0 ~ 40 bar/580 psi)

General:

Pressure Range: 0 to 40 bar/580 psi

Vacuum Range: 0 to -0.95 bar/-13.7 psi

Medium: Air

Test hose: 0.5 meter

Dimension: 220x105x63 mm

Weight: approximately 510 grams

Material: Aluminium, brass, ABS, NBR

Process Connections : Model PGS40-OEM:

Reference Port: G1/2 swivel adapter

Test point: Test hose with G1/4 swivel adapter

Process Connections: Model PGS40-OEM-G14:

Reference Port: G1/4 swivel adapter

Test point: Test hose with G1/4 swivel adapter

Process connections: Model PGS40-OEM-N14:

Reference Port: 1/4″ NPT Female

Test Point: Test hose with 1/4″ NPT F adapter
