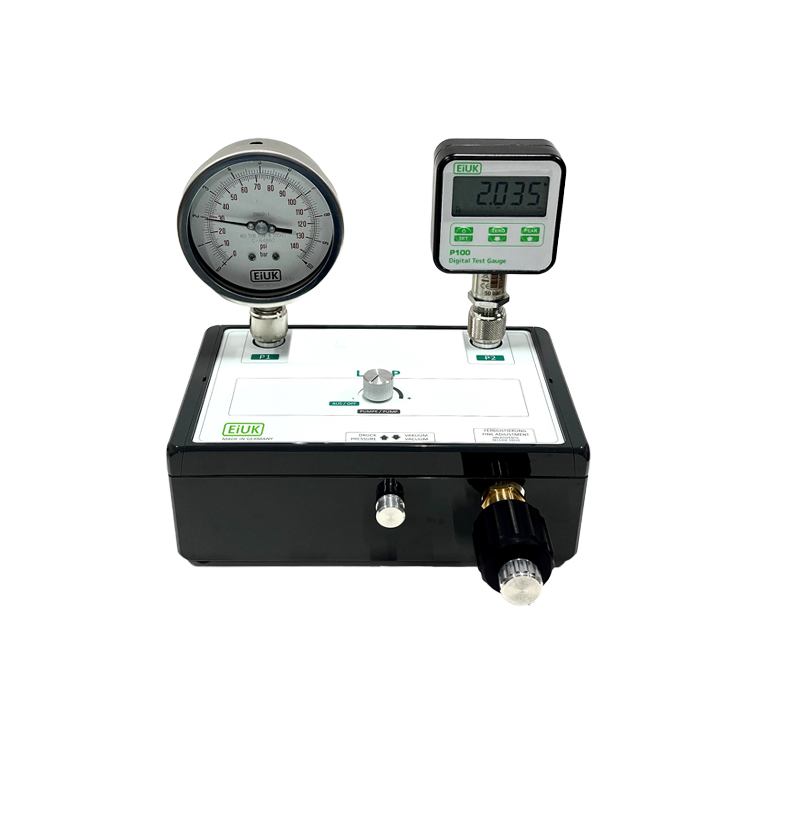

EiUK PGS25e Electric Pressure Pump (0 ~ 25 bar/363 psi)

Specifications:

Pressure Range: 0 to 25 bar/363 psi

Vacuum Range*: 0 to -0.900 bar/-13.7 psi

Pressure Adjustment: Better than 1 mbar

Pressure Ports: 2 x fitted pressure ports with dirty separator G1/2″ and G1/4″

Medium: Air

Vetted Parts: Stainless steel, nickel-plated brass, brass, FKM

General:

Power Supply: 110…230 VAC (incl. power supply unit to 24 VDC / 1.5 ADC)

Motor Specifications: 24 VDC, 220 Ncm, 0.88 A

Temperatures: Operation 0…50°C (+32…+122°F); Storage -20…+60°C (-4…+140°F)

Dimension: Approx. 271 x 228 x 116 mm (without power supply unit)

Weight: Approx. 2.9 kg (without power supply unit)

Housing: ABS

Notes: * At nominal barometric pressure of 1013 mbar abs
