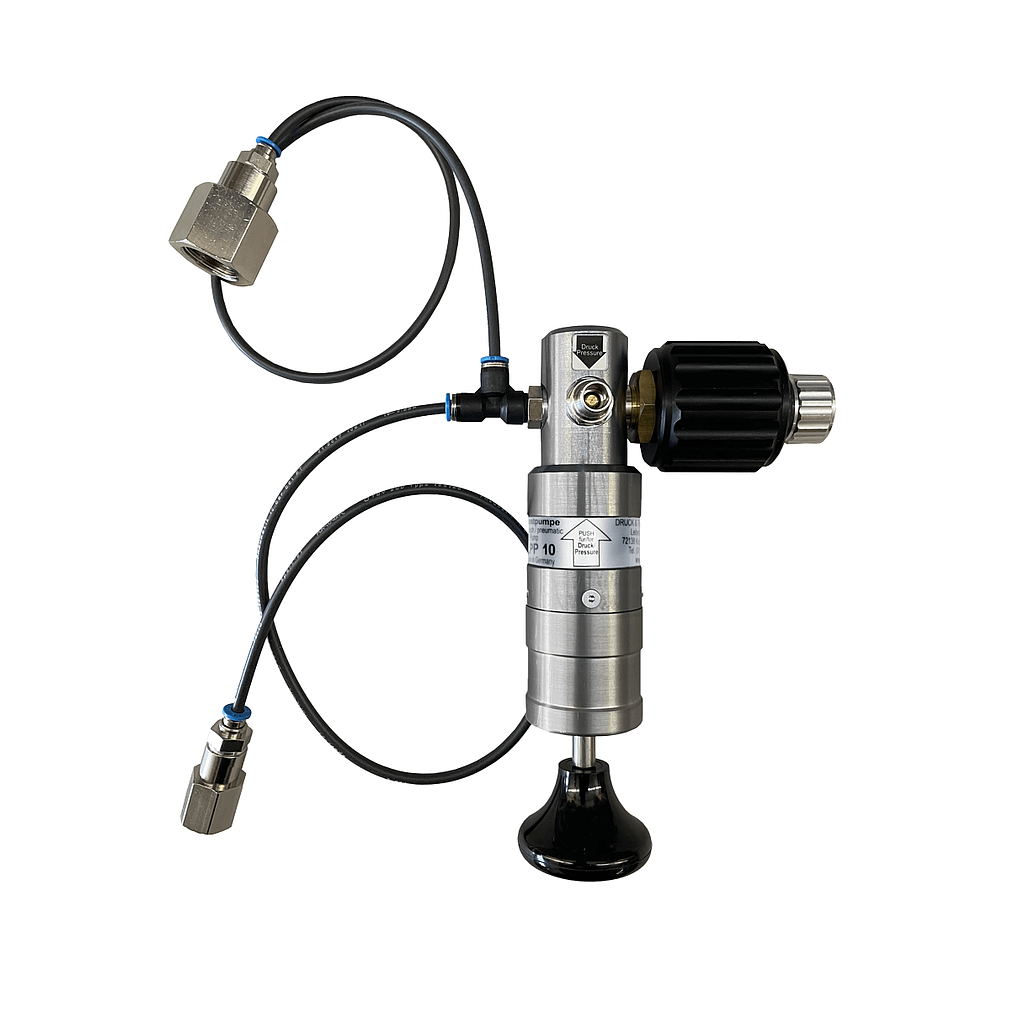

EiUK PGS10 Hand pump for low pressure calibration (0 ~ 10 bar/145 psi)

Pressure Range: 0 to 10 bar/145 psi

Vacuum Range: -850 mbar/-12.5 psi

Pressure Connections:

Reference: G1/2″ BSP(F) with push-in adapter and 0.5 mt hose (4 x 2 mm)

Test Point: G1/4″ BSP(F) with push-in adapter and 0.5 mt hose (4 x 2 mm)

Volume Control: Fine Adjustment to 0.01 mbar

Dimensions: Approx.172 x 100 x 58 mm

Weight: approx. 697 g

Scope of Supply: PGS10 hand pump

1 x T-piece adapter direct mounted on pump body

2 x pneumatic hose 4 x 2.5 mm, each length 0.5 m

1 x G1/4 F test point quick fit adapter

1 x G1/2 F Reference port adapter

Instruction Manual
