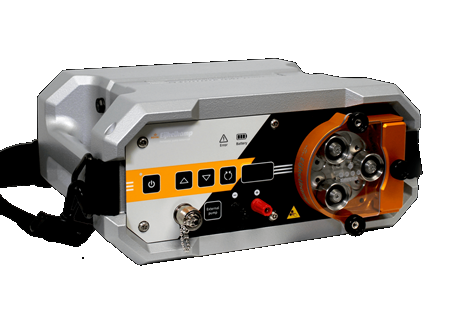

Eijkelkamp Peristaltic Pump ROYAL Peristaltic Pump (50~2000ml/min)

Dimensions: 350 x 325 x 155 mm (max.)

Weight excl. lithium-ion battery: Approximately 7 kg

Battery Weight: 10 Ah: 1.5 kg | 7 Ah: 0.86 kg

Material Standard Main Housing: HIPS

Preferred Pump Tube Material: Silicone

Suction Head (depending on ambient and tube conditions):

Tube ∅ 4x8 mm: 8...9.5 metres of water column | Tube ∅ 6x10 mm: 6...9 metres of water column

Minimum Flow Rate: Approximately 50 ml/min.

Maximum Flow Rate: Approximately 2000 ml/min.

Preferred Ambient Temperature: -10...+40°C

IP Class: IP66

Suction head (depending on ambient and tube conditions):

Tube Ø 4×8 mm: …9.5 m.wc**

Tube Ø 6×10 mm: 6…9 m.wc**

Minimum flow rate @ 10 rev./min.: ca. 50 ml/min

Maximum flow rate @ 400 rev./min. (depending on height/peripheral factors): ca. 2000 ml/min
