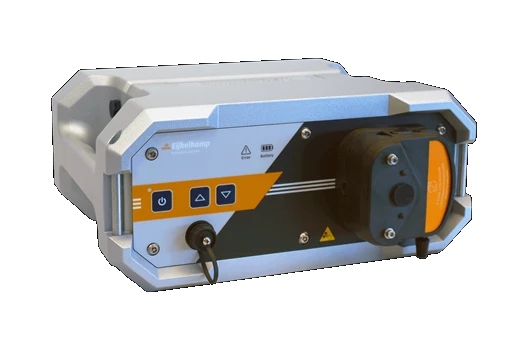

Eijkelkamp Peristaltic Pump PRO Peristaltic Pump (20 ~800ml/min)

Dimensions: 350 x 325 x 155 mm (max.)

Weight excl. lithium-ion battery: Approximately 7 kg

Battery Weight: 10 Ah: 1.5 kg | 7 Ah: 0.86 kg

Material Standard Main Housing: HIPS

Preferred Pump Tube Material: Silicone

Suction Head (depending on ambient and tube conditions): 3⁄16" ID x 3⁄8" OD, 8...9.5 metres of water column

Minimum Flow Rate: Approximately 20 ml/min.

Maximum Flow Rate: Approximately 800 ml/min.

Preferred Ambient Temperature: -10...+40°C

IP Class: IP66

Suction head (depending on ambient and tube conditions): 3/16" ID × 3/8" OD = 8…9.5 m.wc**

Minimum flow rate @ 10 rev./min.: approx. 20 ml/min

Maximum flow rate @ 400 rev./min. (depending on height/peripheral factors): approx. 800 ml/min
